Class 6 Maths Chapter 9 Solutions: Symmetry

Reviewed source answers

Solution sheet 1

Page No. 219 · Figure it Out

NCERT Class 6 Maths Chapter 9, question 1 — Source question

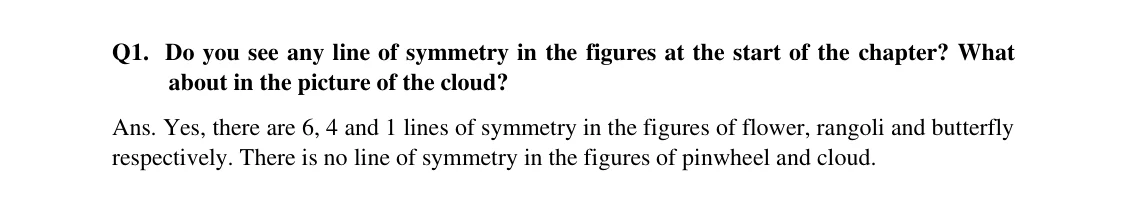

1. Do you see any line of symmetry in the figures at the start of the chapter? What about in the picture of the cloud?

Show solution

Yes, there are 6, 4 and 1 lines of symmetry in the figures of flower, rangoli and butterfly respectively. There is no line of symmetry in the figures of pinwheel and cloud.

Source worked solution for Class 6 Chapter 9, question 1, part 1 — Source worked answer · part 1

Page No. 219 · Figure it Out

NCERT Class 6 Maths Chapter 9, question 2 — Source question

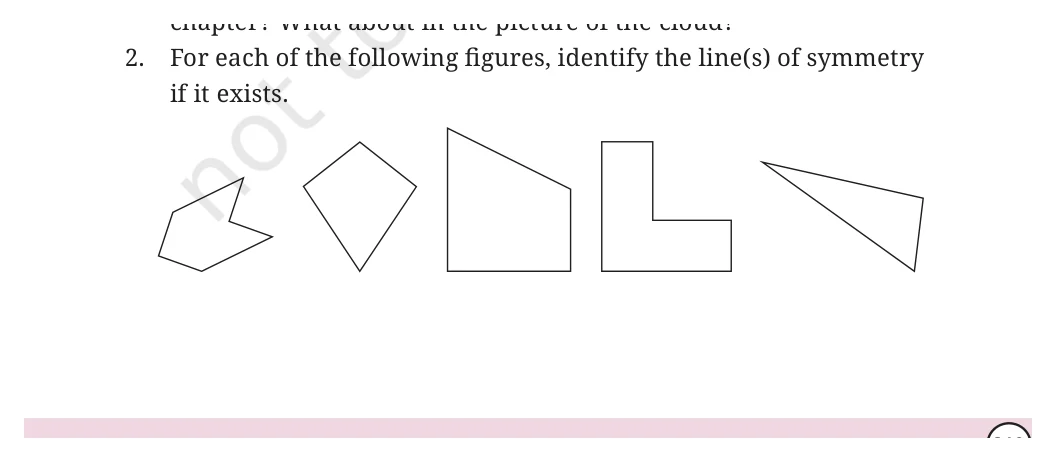

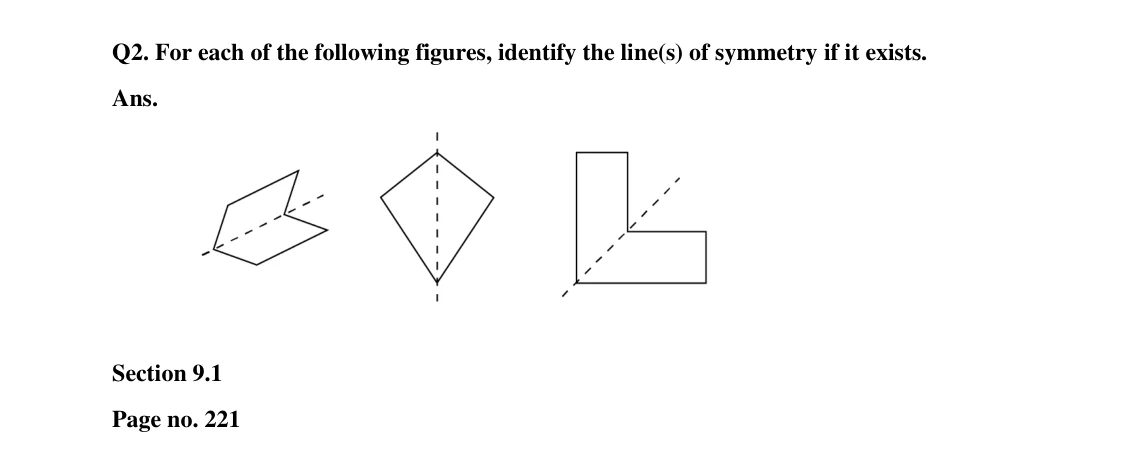

2. For each of the following figures, identify the line(s) of symmetry if it exists.

Show solution

Section 9.1 Page no. 221

Source worked solution for Class 6 Chapter 9, question 2, part 1 — Source worked answer · part 1

Section 9.1 · Page no. 221

NCERT Class 6 Maths Chapter 9, question 3 — Source question

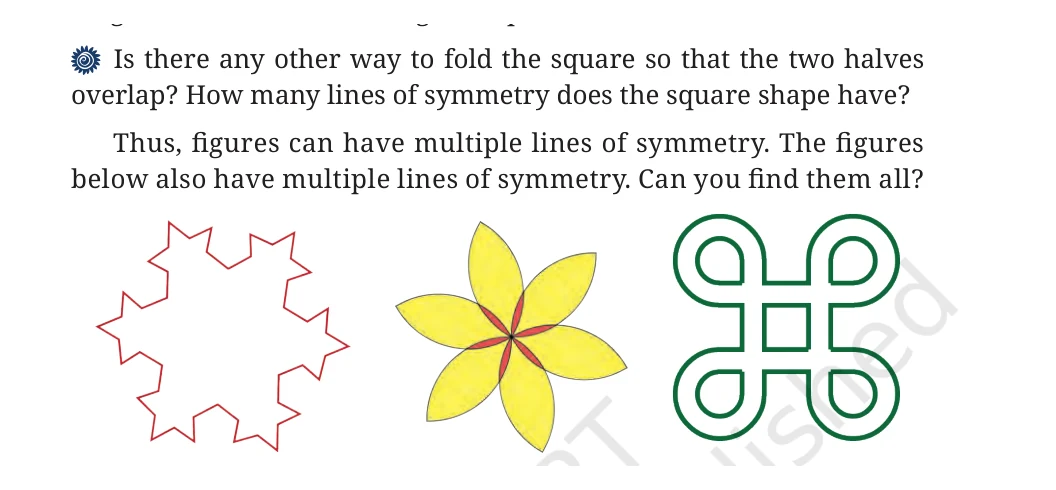

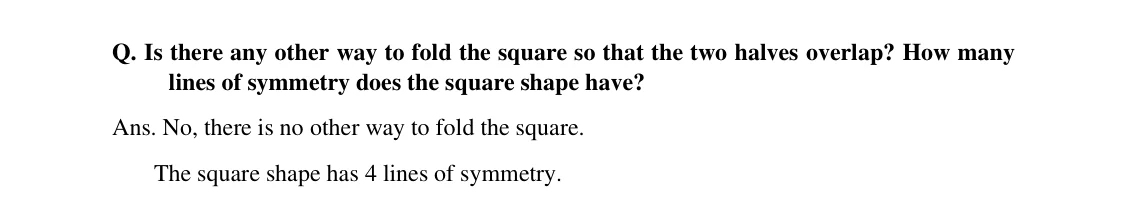

Is there any other way to fold the square so that the two halves overlap? How many lines of symmetry does the square shape have?

Show solution

No, there is no other way to fold the square. The square shape has 4 lines of symmetry.

Source worked solution for Class 6 Chapter 9, question 3, part 1 — Source worked answer · part 1

Section 9.1 · Page no. 221

NCERT Class 6 Maths Chapter 9, question 4 — Source question

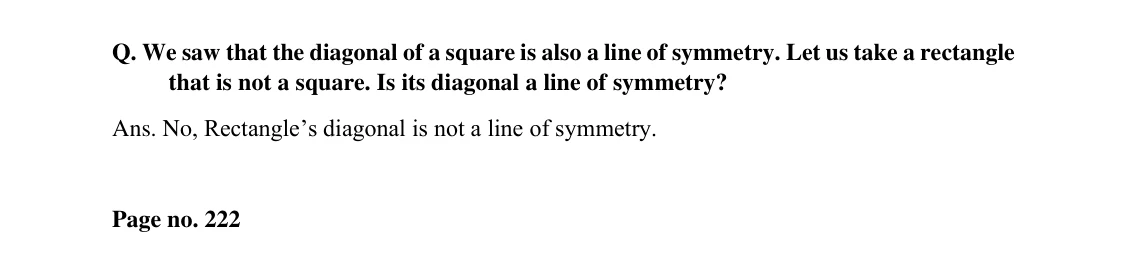

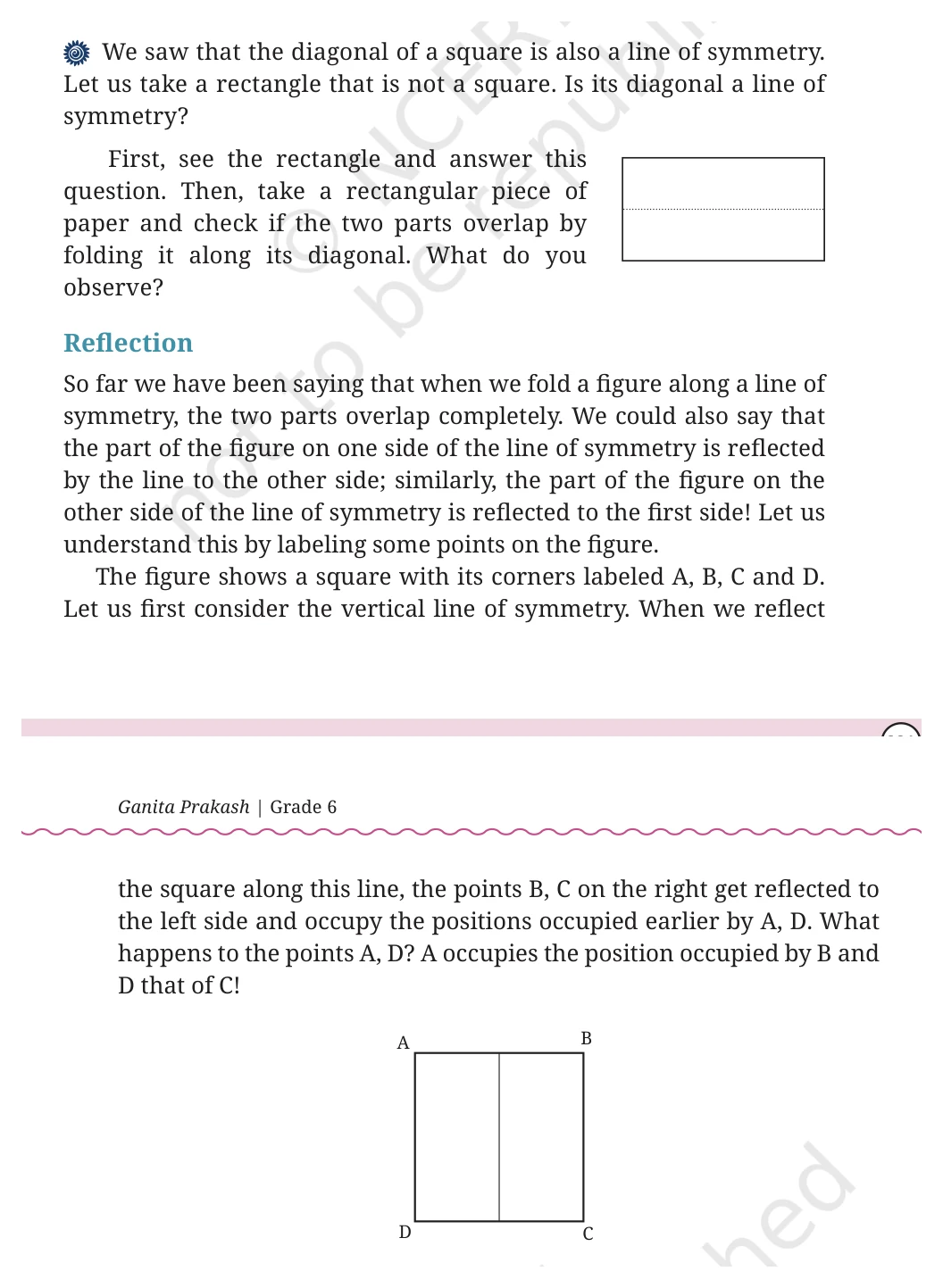

We saw that the diagonal of a square is also a line of symmetry. Let us take a rectangle that is not a square. Is its diagonal a line of symmetry?

Show solution

No, Rectangle’s diagonal is not a line of symmetry. Page no. 222

Source worked solution for Class 6 Chapter 9, question 4, part 1 — Source worked answer · part 1

Page no. 222

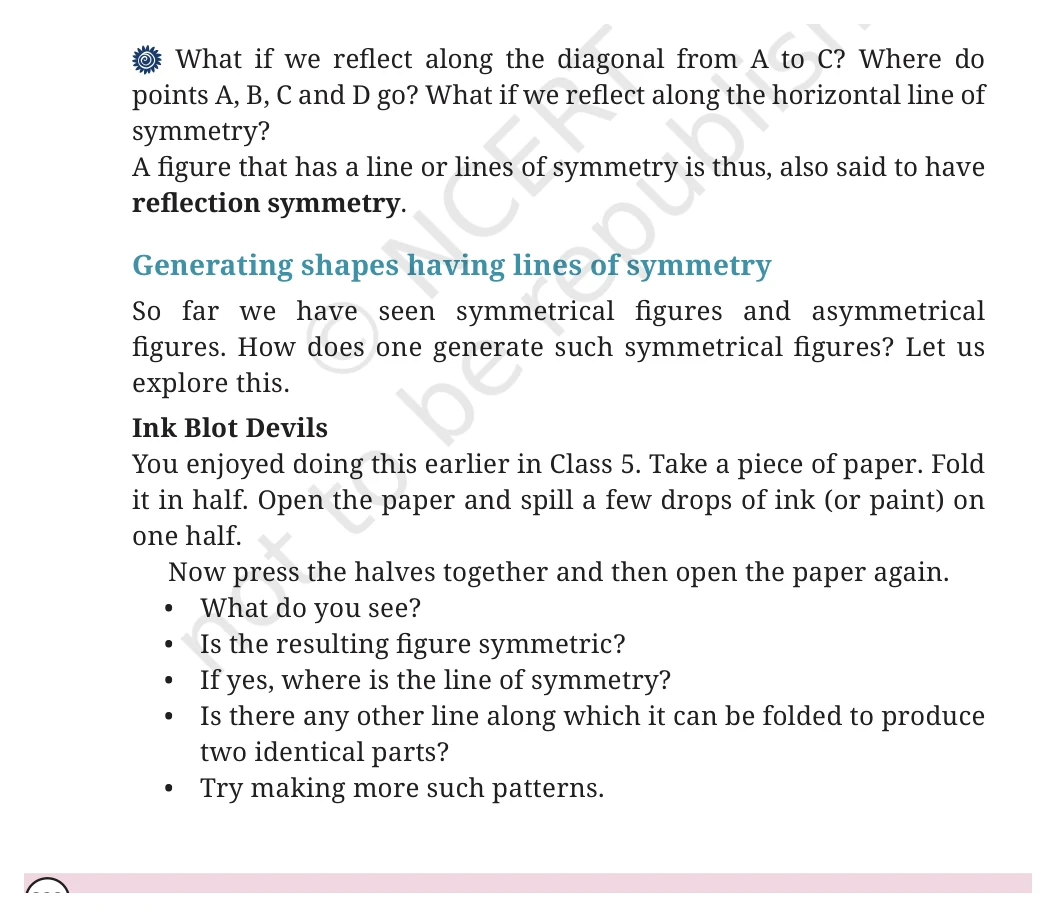

NCERT Class 6 Maths Chapter 9, question 5 — Source question

What if we reflect along the diagonal from A to C? Where do points A, B, C and D go? What if we reflect along the horizontal line of symmetry?

Show solution

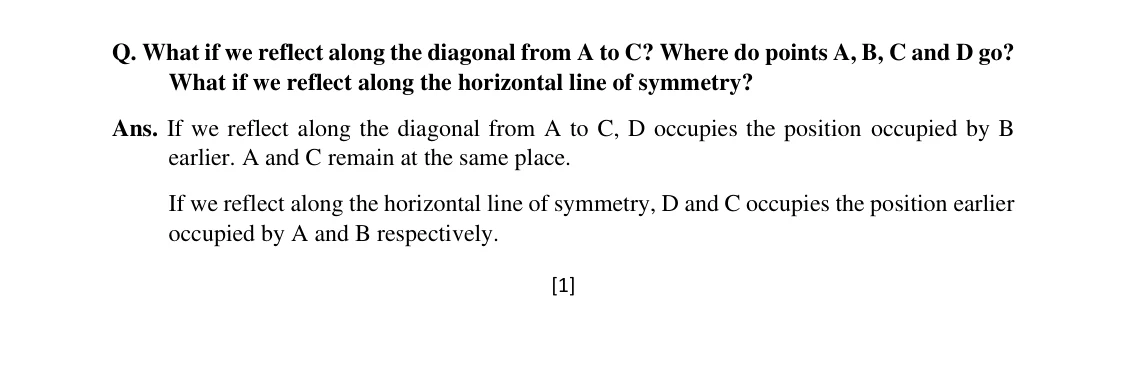

If we reflect along the diagonal from A to C, D occupies the position occupied by B earlier. A and C remain at the same place. If we reflect along the horizontal line of symmetry, D and C occupies the position earlier occupied by A and B respectively. [1] Section 9.1 Page no. 223

Source worked solution for Class 6 Chapter 9, question 5, part 1 — Source worked answer · part 1

Source worked solution for Class 6 Chapter 9, question 5, part 2 — Source worked answer · part 2

Reviewed source answers

Solution sheet 2

Section 9.1 · Page no. 223

NCERT Class 6 Maths Chapter 9, question 6 — Source question

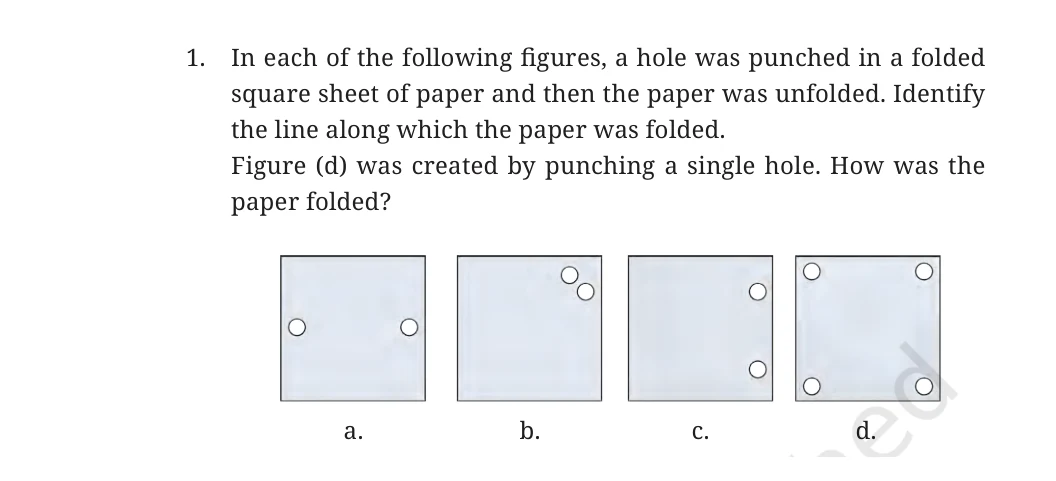

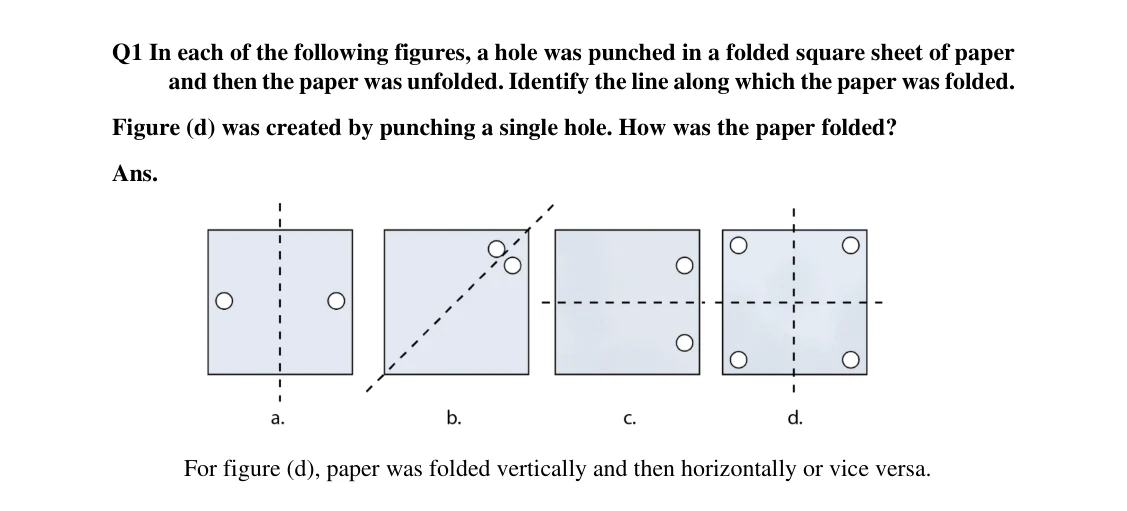

1 In each of the following figures, a hole was punched in a folded square sheet of paper and then the paper was unfolded. Identify the line along which the paper was folded. Figure (d) was created by punching a single hole. How was the paper folded?

Show solution

For figure (d), paper was folded vertically and then horizontally or vice versa.

Source worked solution for Class 6 Chapter 9, question 6, part 1 — Source worked answer · part 1

Section 9.1 · Page no. 223

NCERT Class 6 Maths Chapter 9, question 7 — Source question

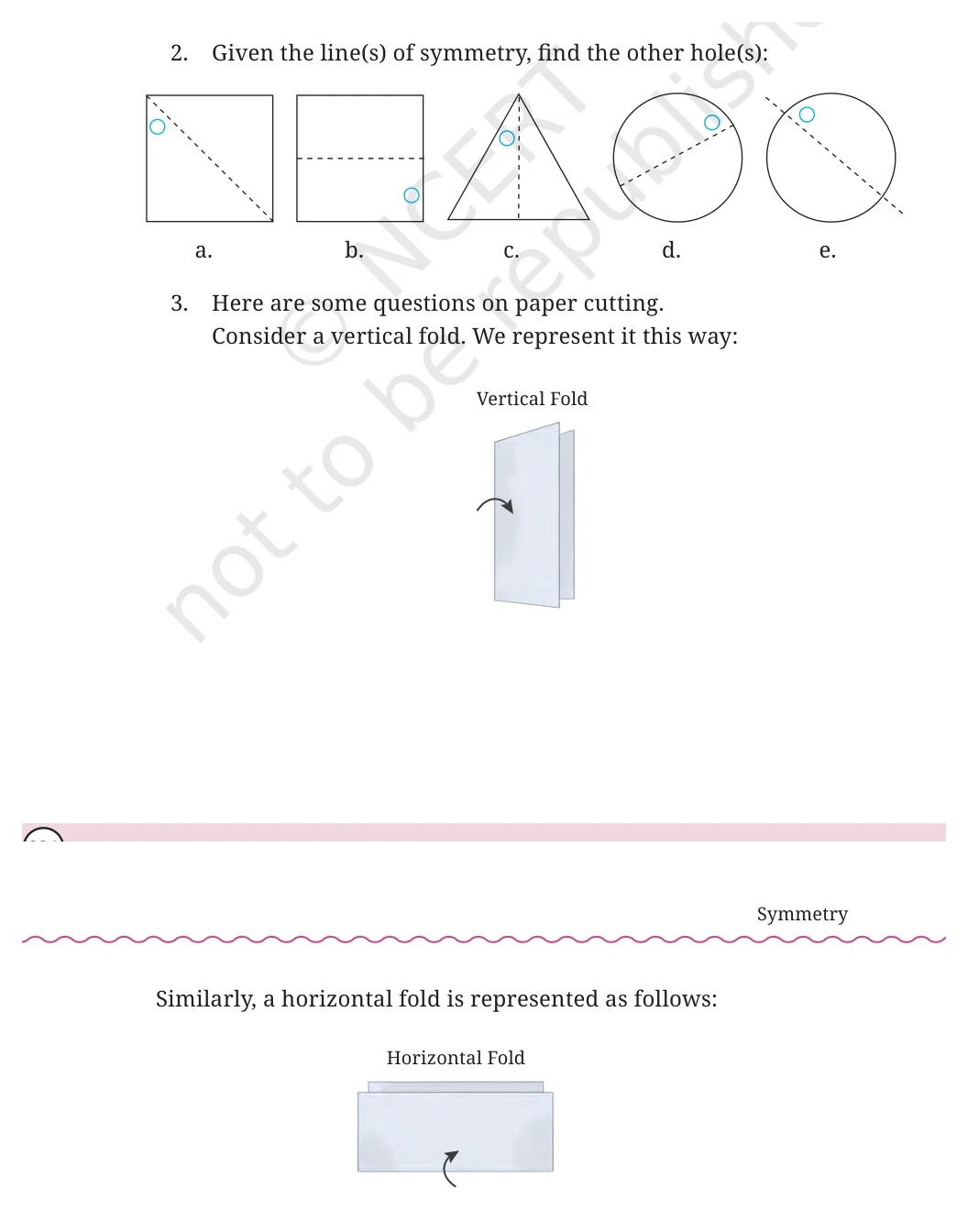

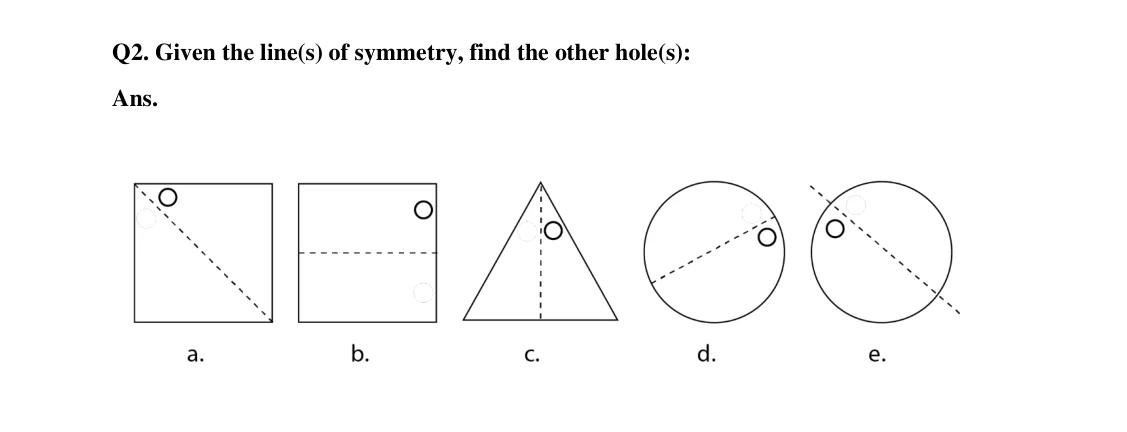

2. Given the line(s) of symmetry, find the other hole(s):

Show solution

Refer to the worked source solution below.

Source worked solution for Class 6 Chapter 9, question 7, part 1 — Source worked answer · part 1

Page no. 223

NCERT Class 6 Maths Chapter 9, question 8 — Source question

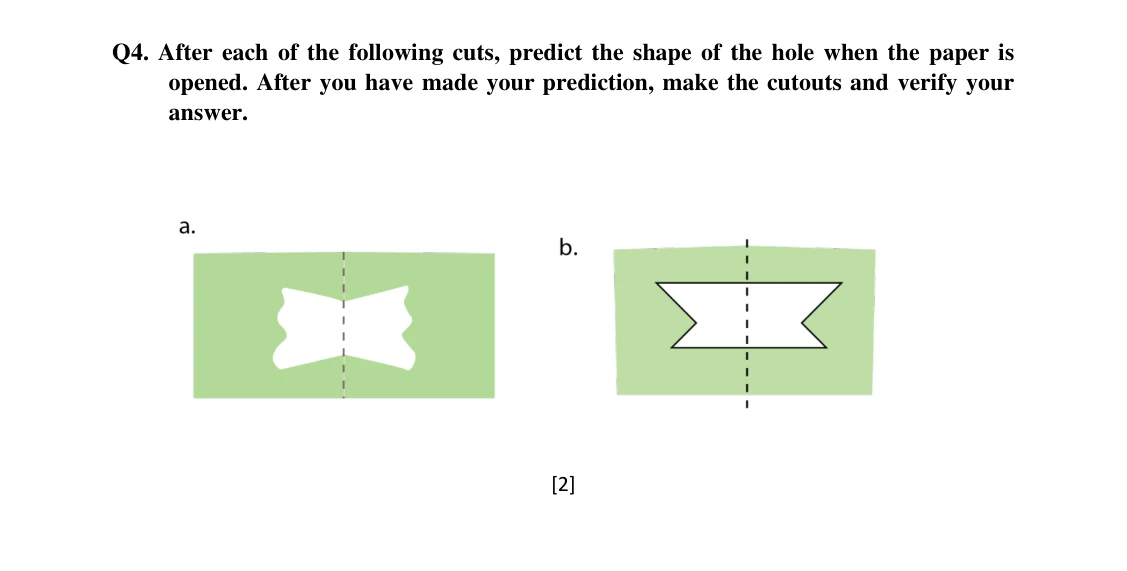

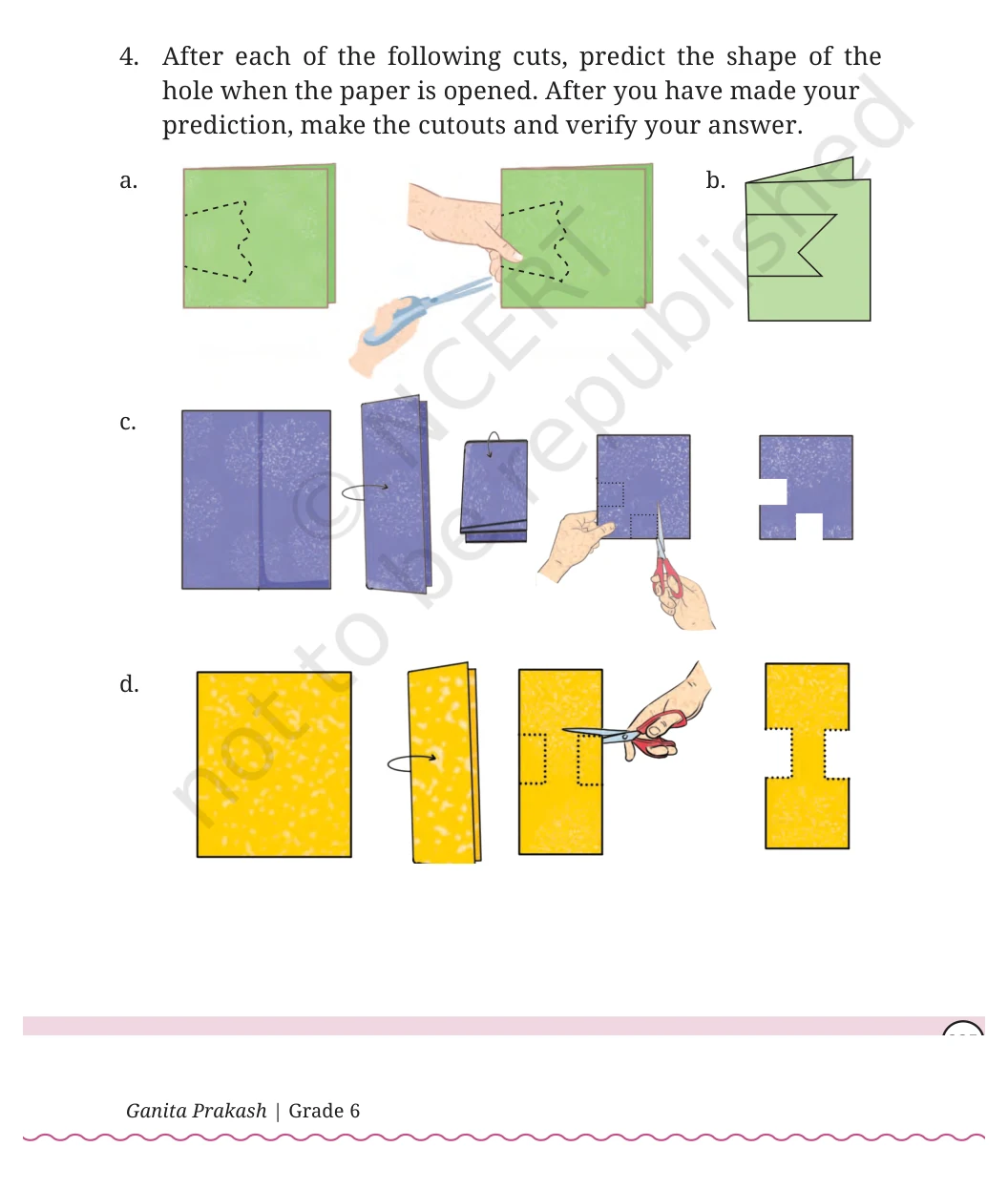

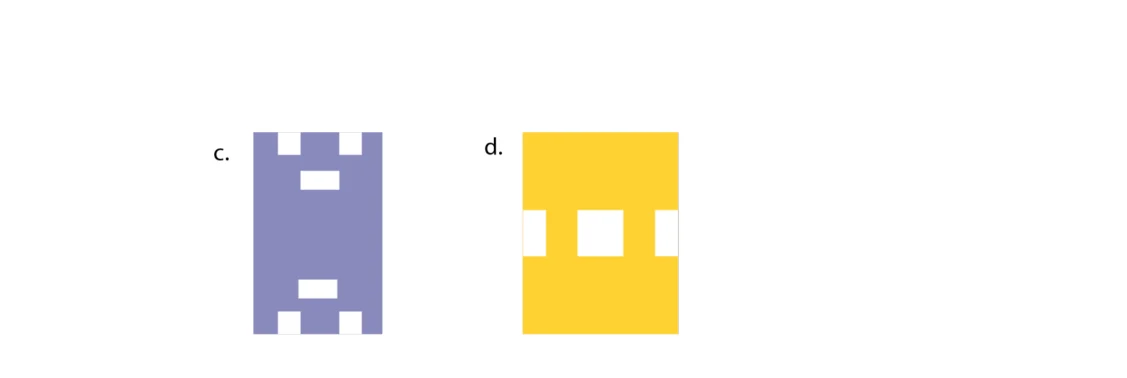

4. After each of the following cuts, predict the shape of the hole when the paper is opened. After you have made your prediction, make the cutouts and verify your

Show solution

[2]

Source worked solution for Class 6 Chapter 9, question 8, part 1 — Source worked answer · part 1

Source worked solution for Class 6 Chapter 9, question 8, part 2 — Source worked answer · part 2

Reviewed source answers

Solution sheet 3

Source solution page 28

NCERT Class 6 Maths Chapter 9, question 9 — Source question

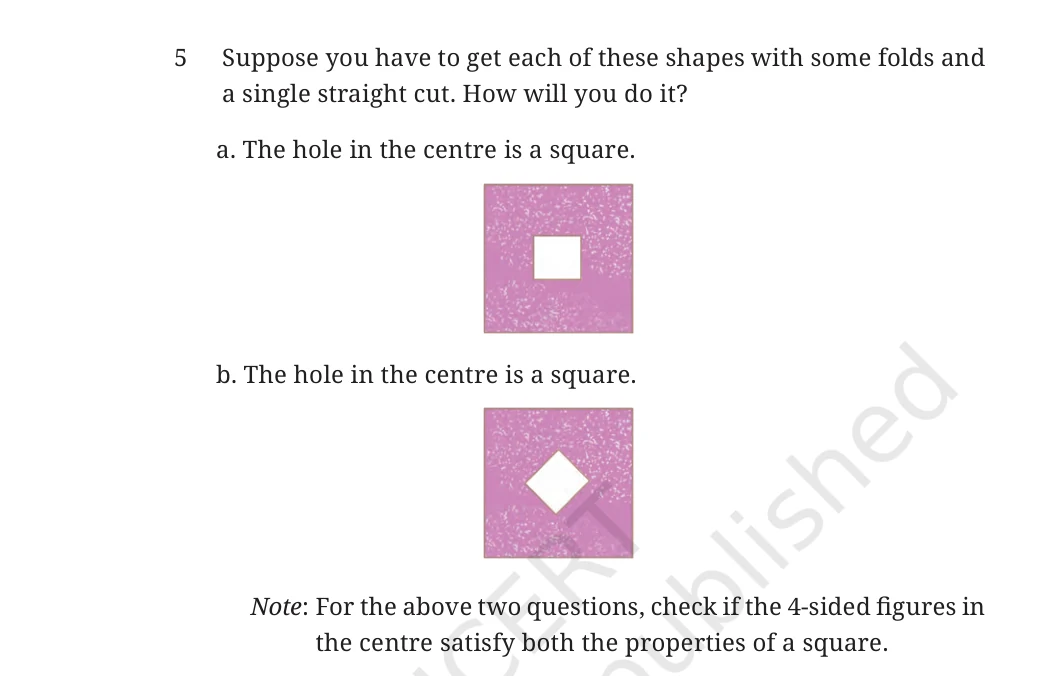

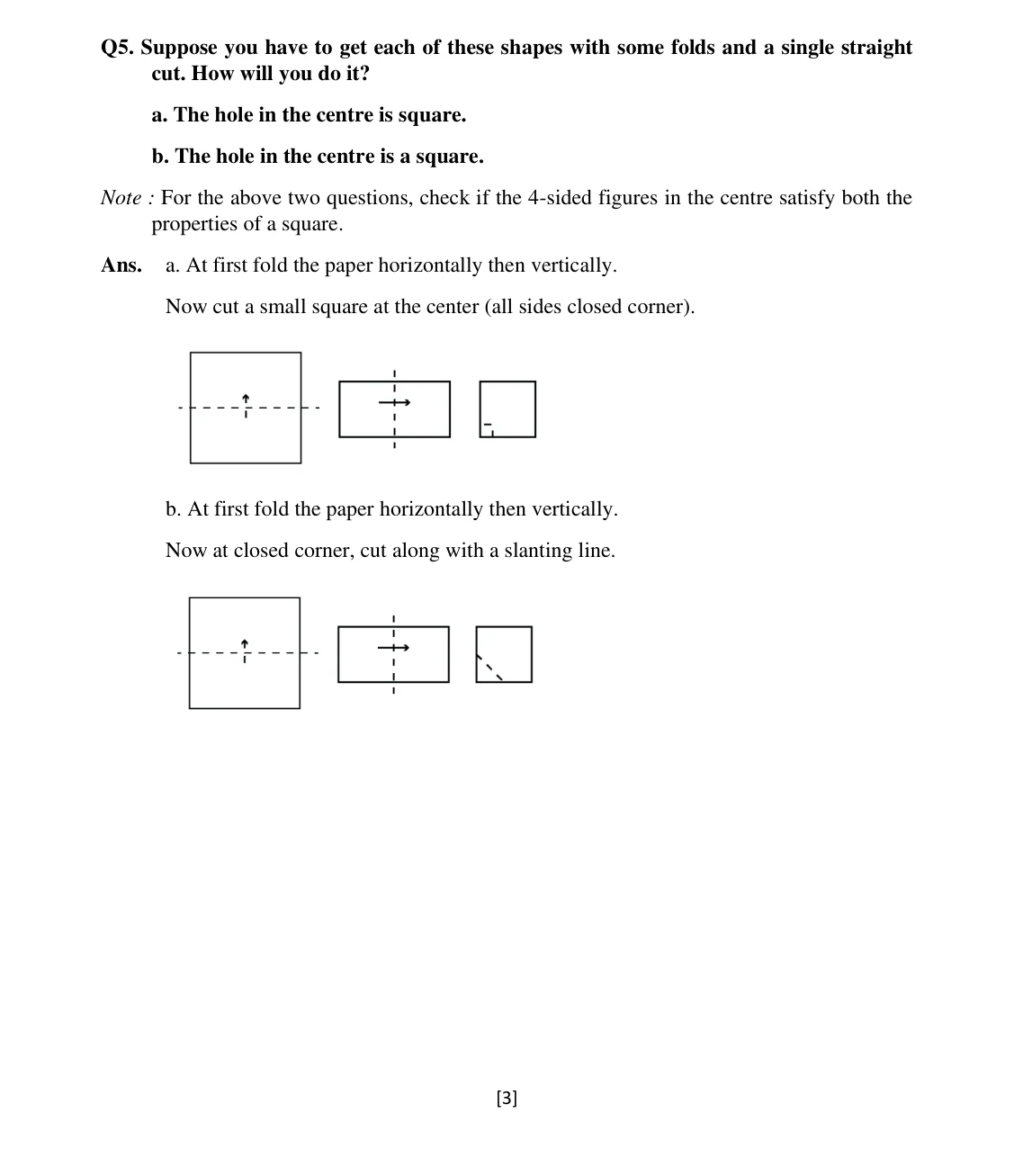

5. Suppose you have to get each of these shapes with some folds and a single straight cut. How will you do it? a. The hole in the centre is square. b. The hole in the centre is a square. Note : For the above two questions, check if the 4-sided figures in the centre satisfy both the properties of a square.

Show solution

a. At first fold the paper horizontally then vertically. Now cut a small square at the center (all sides closed corner). b. At first fold the paper horizontally then vertically. Now at closed corner, cut along with a slanting line. [3]

Source worked solution for Class 6 Chapter 9, question 9, part 1 — Source worked answer · part 1

Source worked solution for Class 6 Chapter 9, question 9, part 2 — Source worked answer · part 2

Reviewed source answers

Solution sheet 4

Source solution page 29

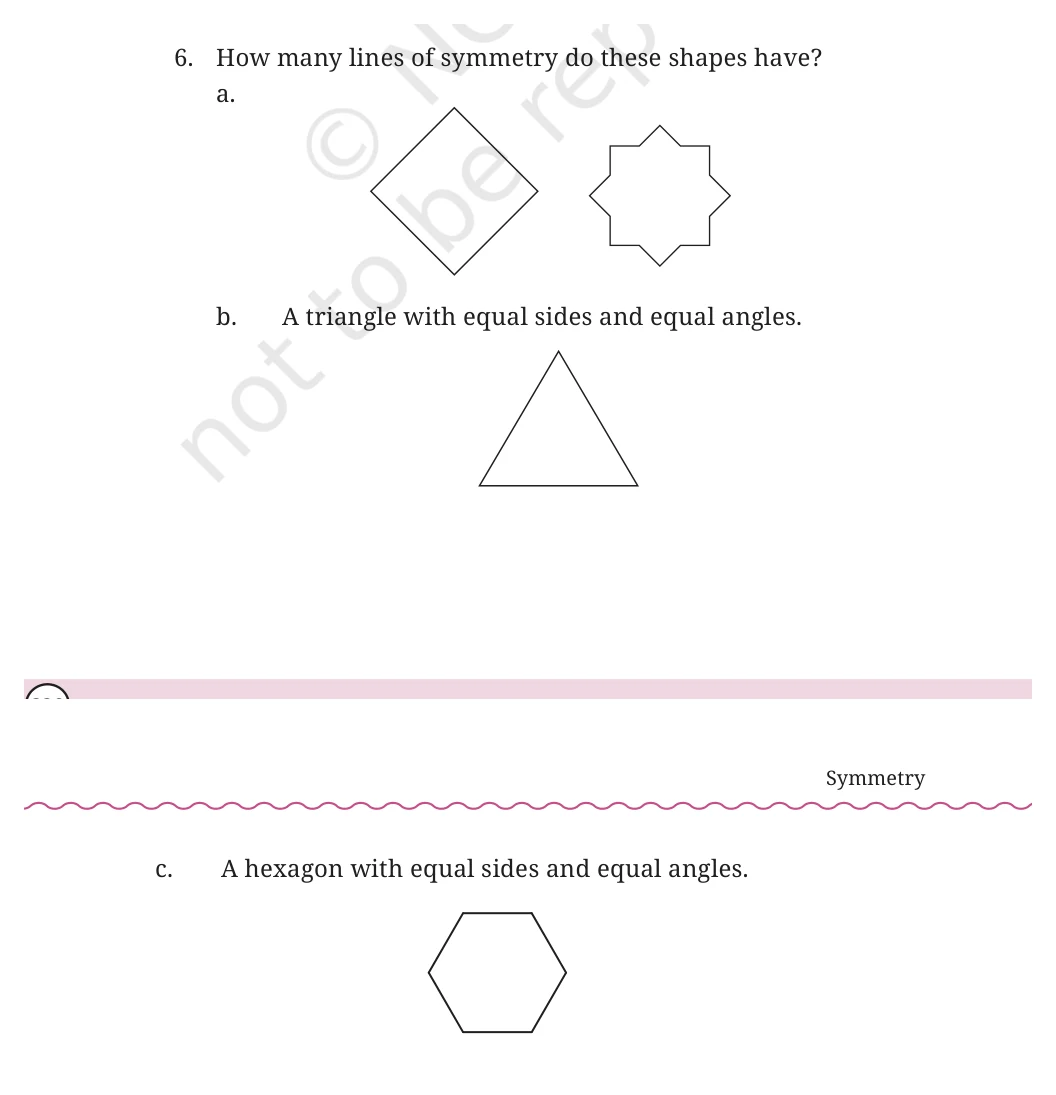

NCERT Class 6 Maths Chapter 9, question 10 — Source question

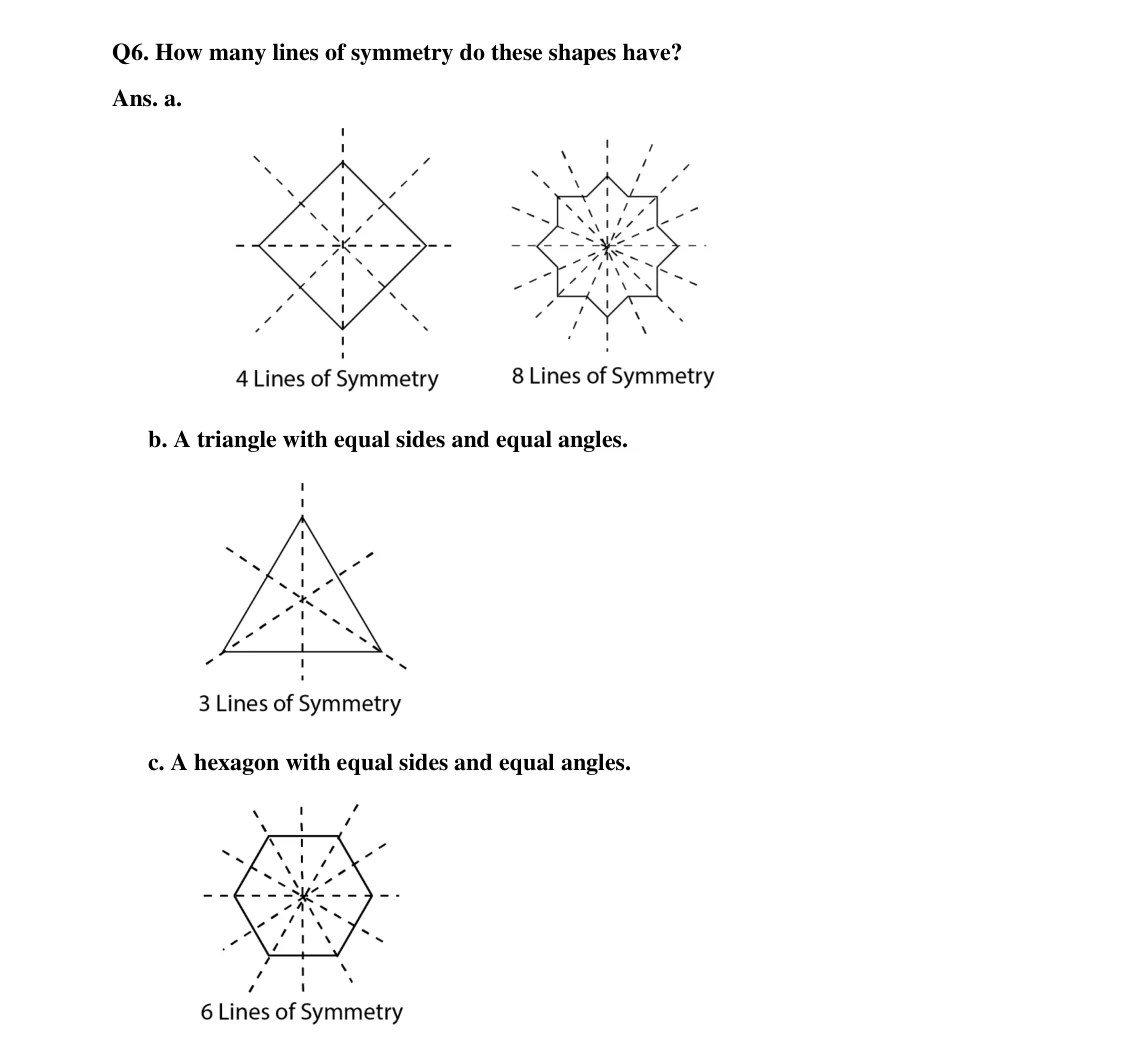

6. How many lines of symmetry do these shapes have?

Show solution

a. b. A triangle with equal sides and equal angles. c. A hexagon with equal sides and equal angles.

Source worked solution for Class 6 Chapter 9, question 10, part 1 — Source worked answer · part 1

Source solution page 29

NCERT Class 6 Maths Chapter 9, question 11 — Source question

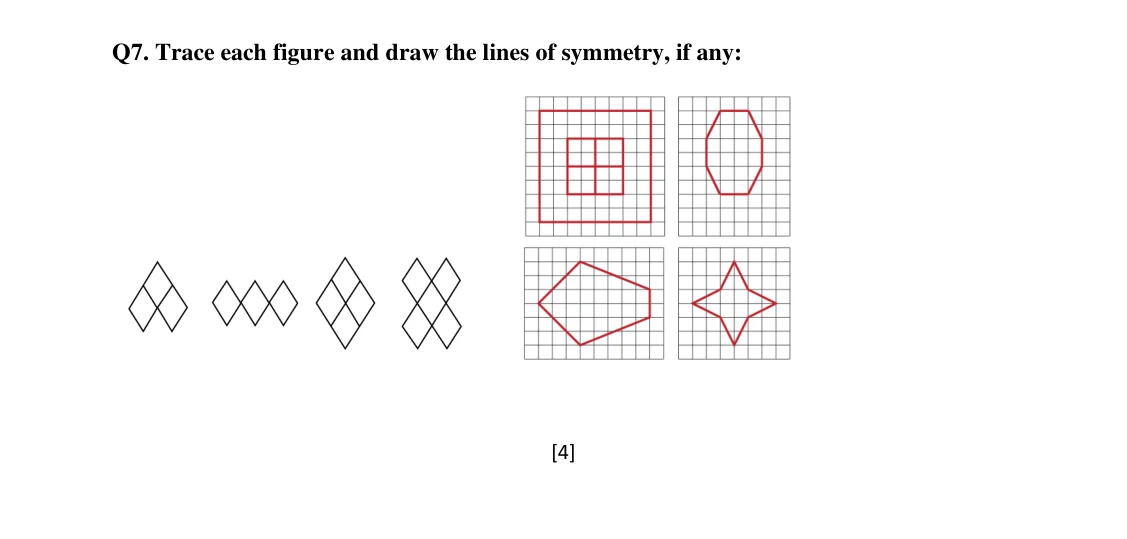

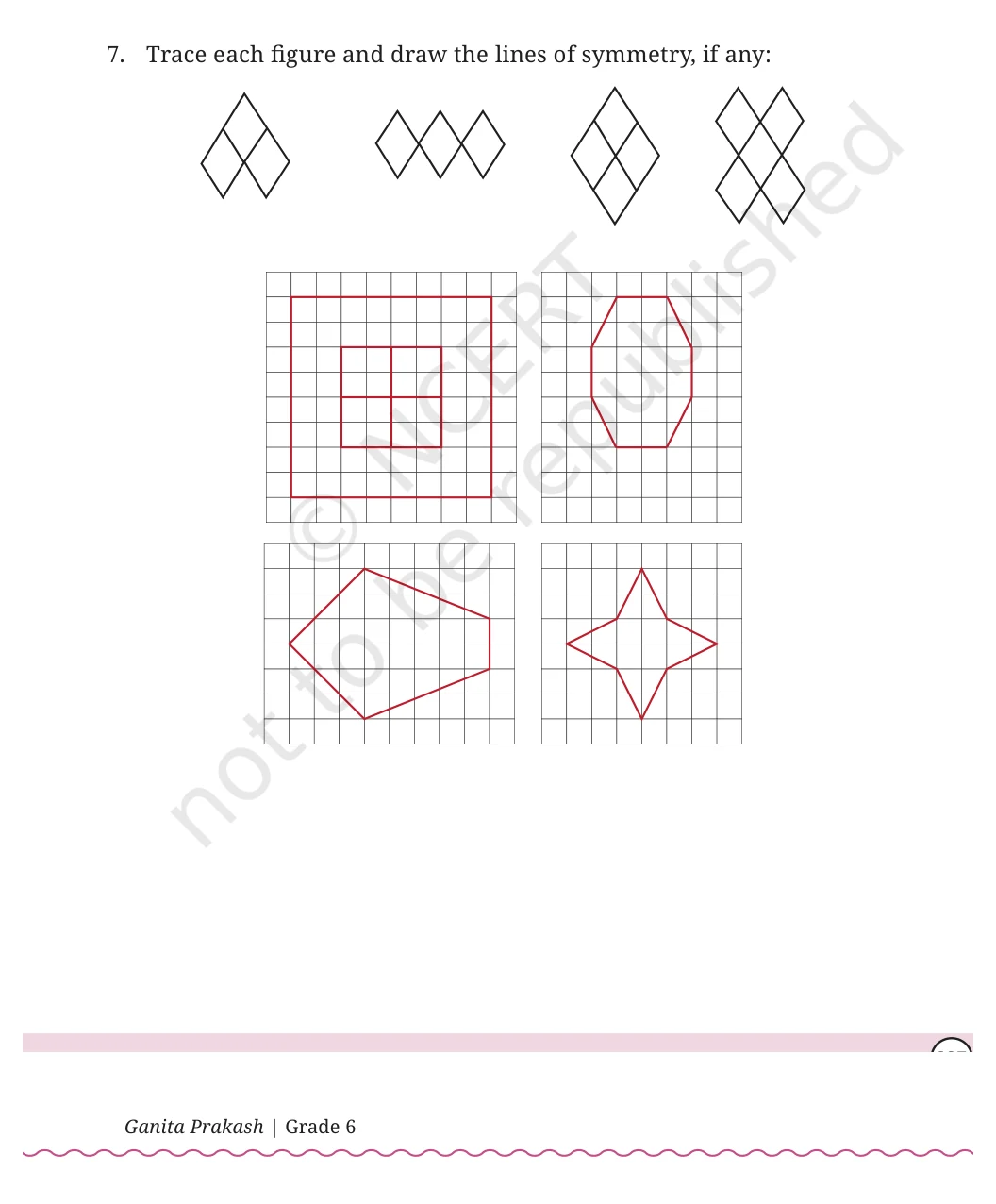

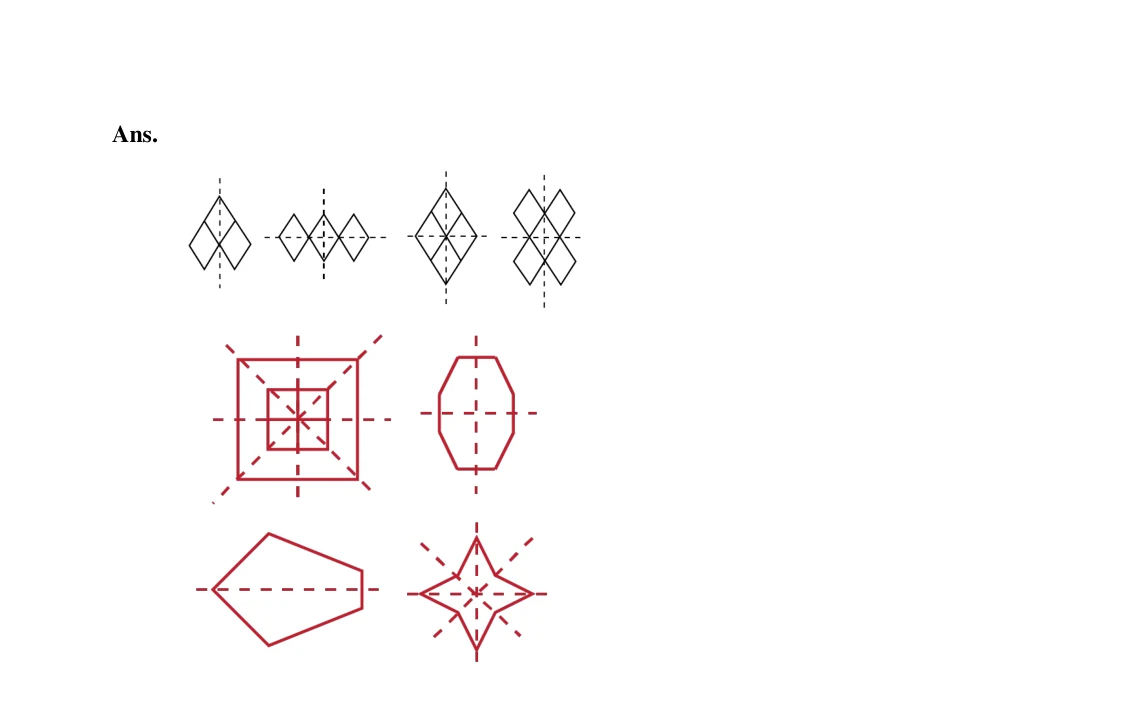

7. Trace each figure and draw the lines of symmetry, if any: [4]

Show solution

Refer to the worked source solution below.

Source worked solution for Class 6 Chapter 9, question 11, part 1 — Source worked answer · part 1

Source worked solution for Class 6 Chapter 9, question 11, part 2 — Source worked answer · part 2

Reviewed source answers

Solution sheet 5

Source solution page 30

NCERT Class 6 Maths Chapter 9, question 12 — Source question

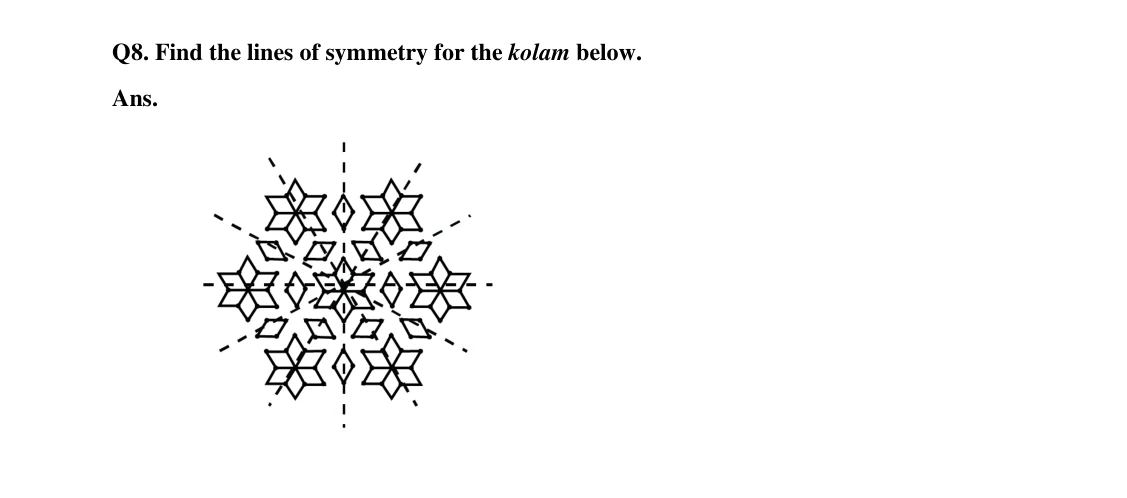

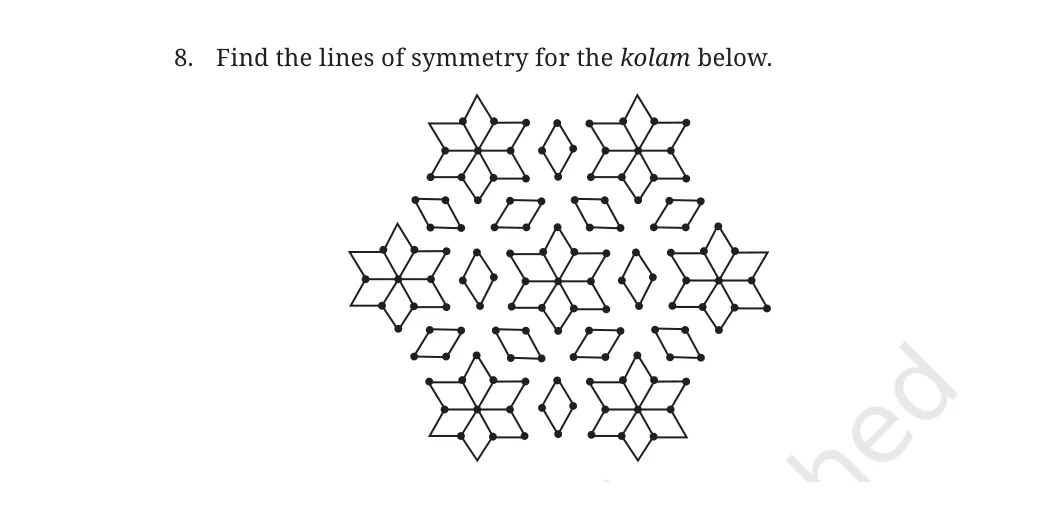

8. Find the lines of symmetry for the kolam below.

Show solution

Refer to the worked source solution below.

Source worked solution for Class 6 Chapter 9, question 12, part 1 — Source worked answer · part 1

Source solution page 30

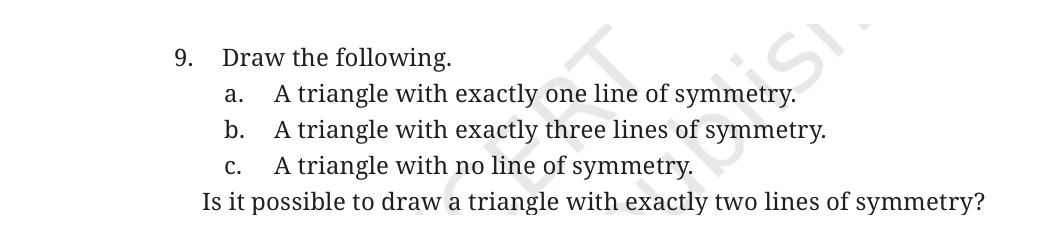

NCERT Class 6 Maths Chapter 9, question 13 — Source question

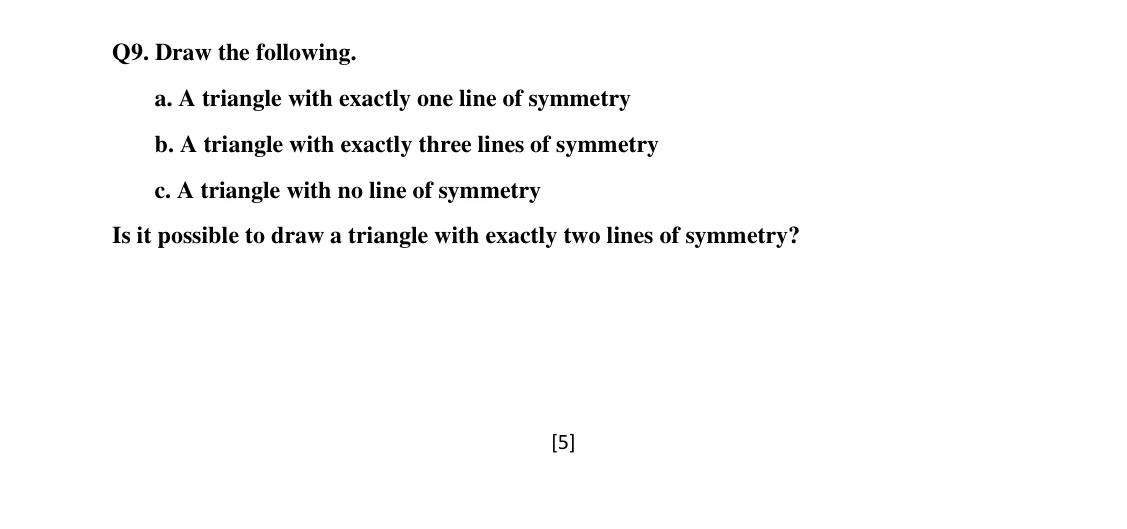

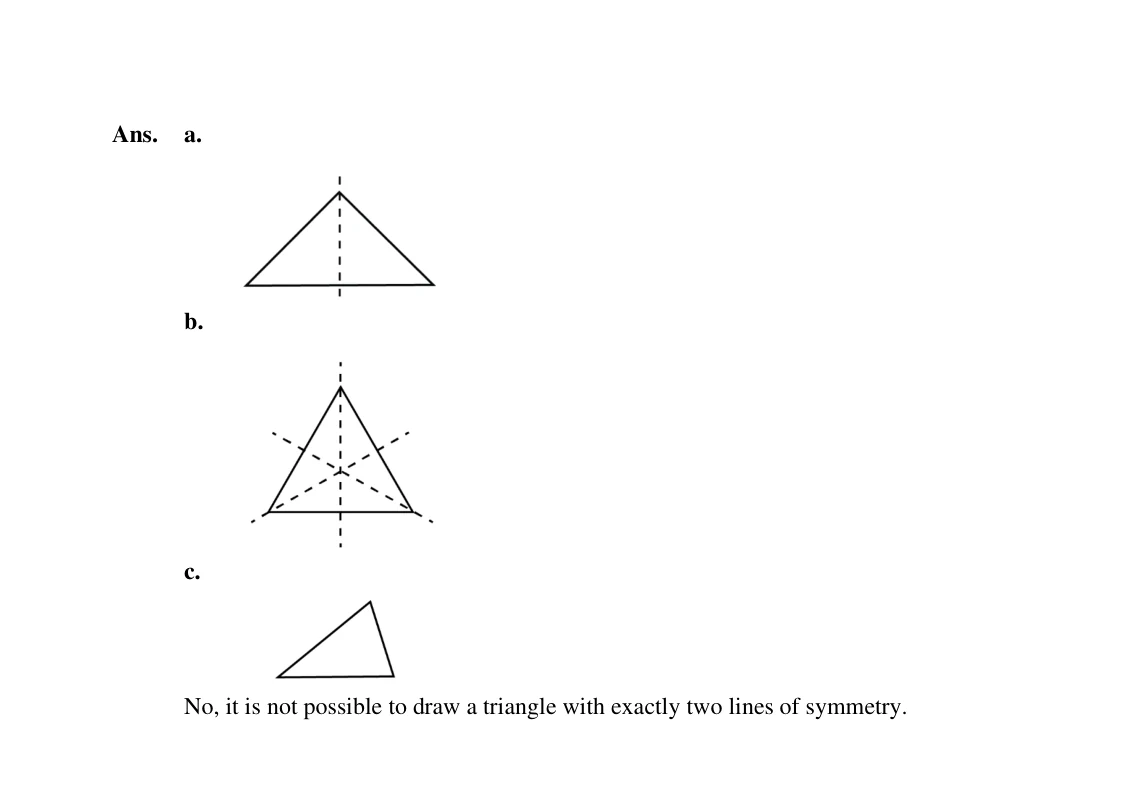

9. Draw the following. a. A triangle with exactly one line of symmetry b. A triangle with exactly three lines of symmetry c. A triangle with no line of symmetry Is it possible to draw a triangle with exactly two lines of symmetry? [5]

Show solution

a. b. c. No, it is not possible to draw a triangle with exactly two lines of symmetry.

Source worked solution for Class 6 Chapter 9, question 13, part 1 — Source worked answer · part 1

Source worked solution for Class 6 Chapter 9, question 13, part 2 — Source worked answer · part 2

Reviewed source answers

Solution sheet 6

Source solution page 31

NCERT Class 6 Maths Chapter 9, question 14 — Source question

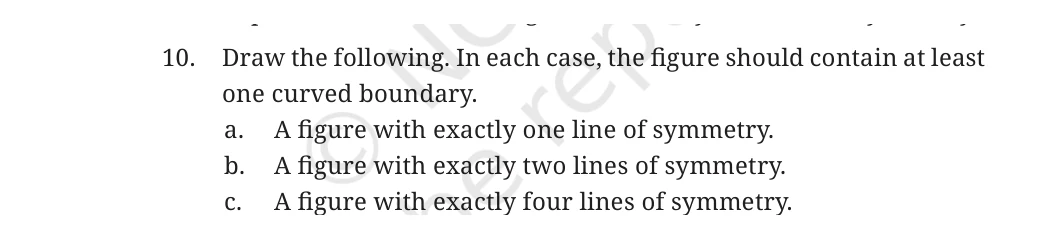

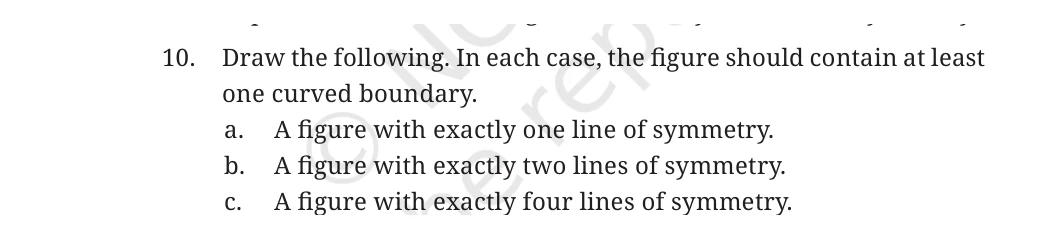

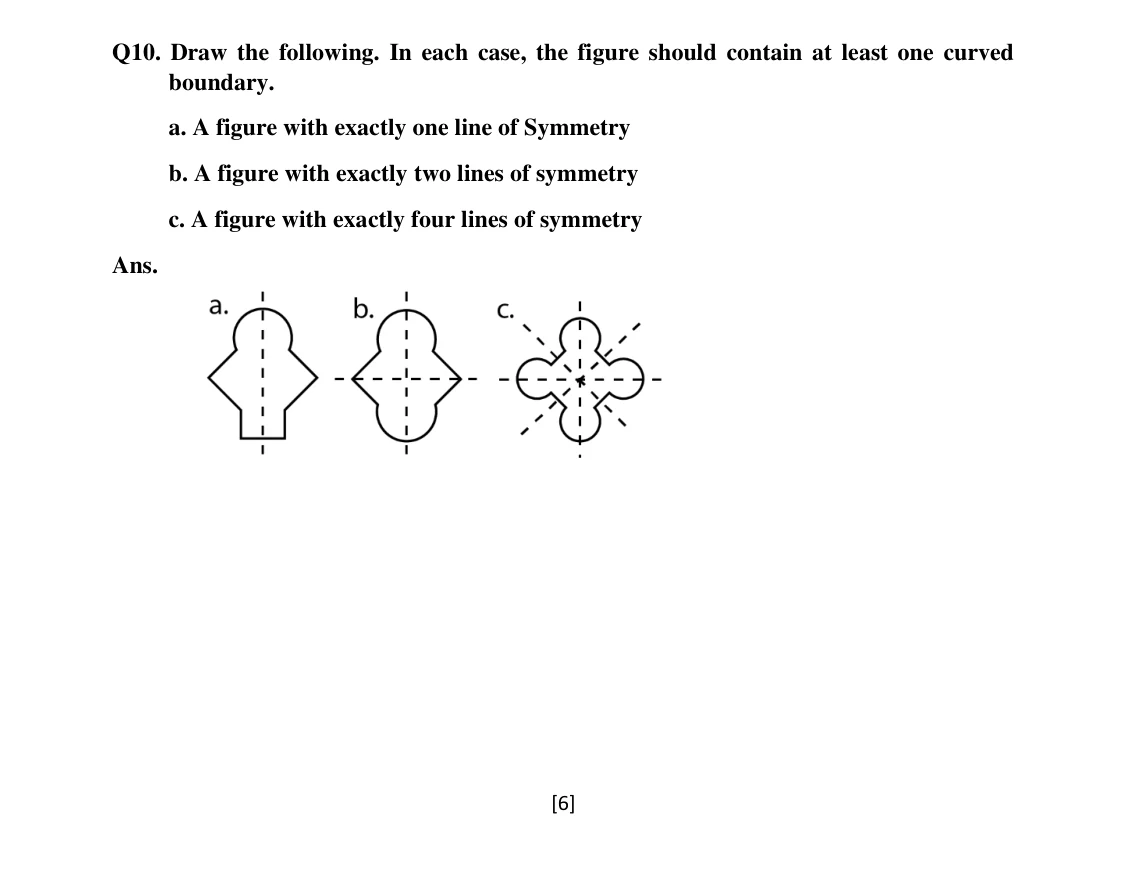

10. Draw the following. In each case, the figure should contain at least one curved boundary. a. A figure with exactly one line of Symmetry b. A figure with exactly two lines of symmetry c. A figure with exactly four lines of symmetry

Show solution

[6]

Source worked solution for Class 6 Chapter 9, question 14, part 1 — Source worked answer · part 1

Source worked solution for Class 6 Chapter 9, question 14, part 2 — Source worked answer · part 2

Reviewed source answers

Solution sheet 7

Source solution page 32

NCERT Class 6 Maths Chapter 9, question 15 — Source question

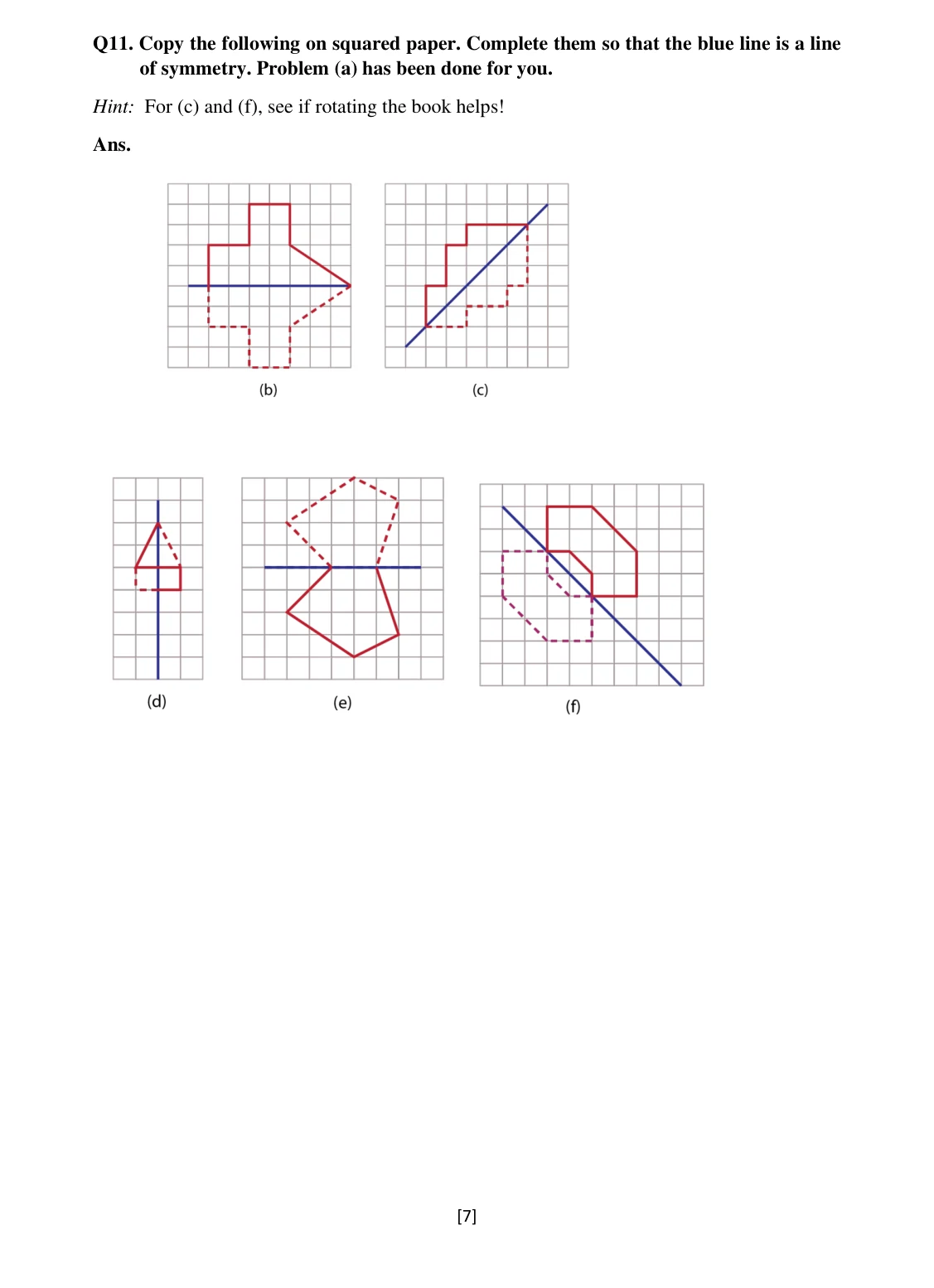

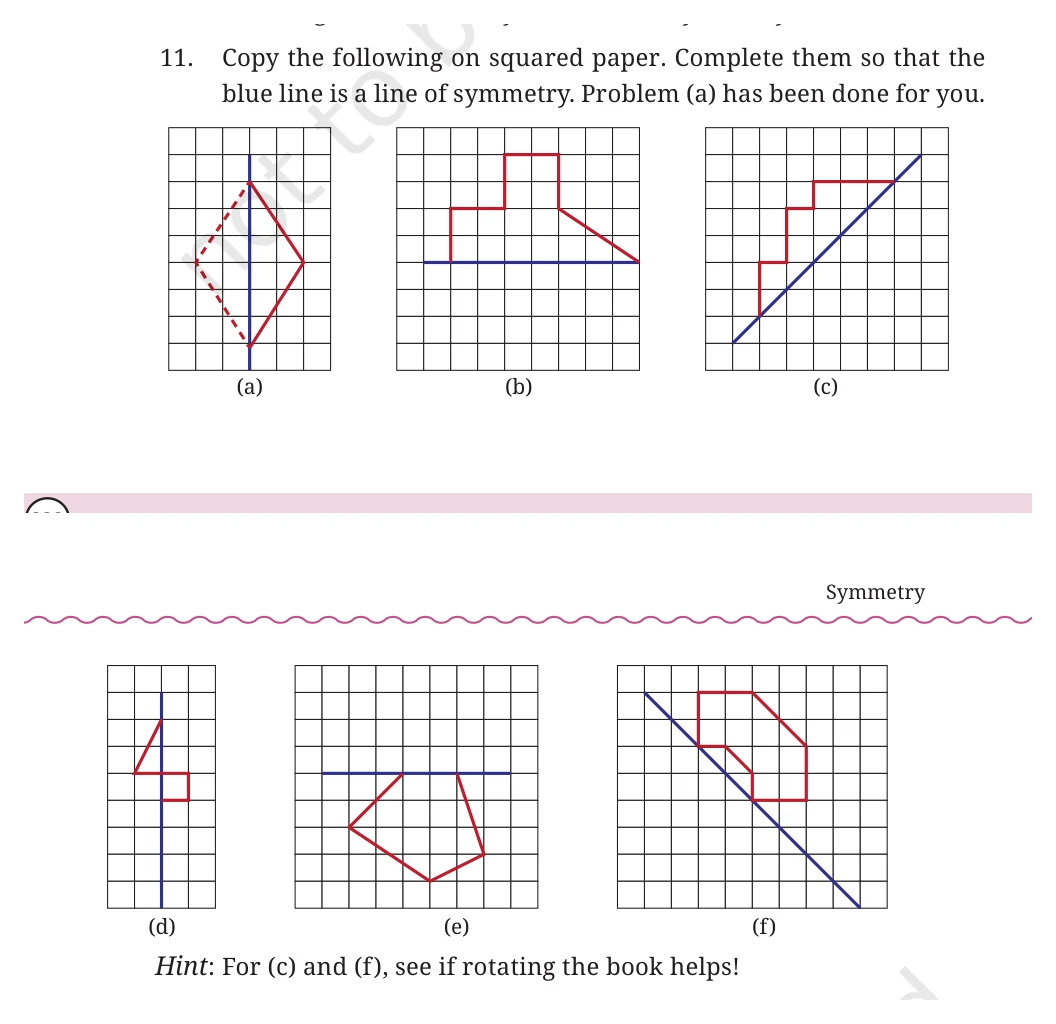

11. Copy the following on squared paper. Complete them so that the blue line is a line of symmetry. Problem (a) has been done for you. Hint: For (c) and (f), see if rotating the book helps!

Show solution

[7]

Source worked solution for Class 6 Chapter 9, question 15, part 1 — Source worked answer · part 1

Source worked solution for Class 6 Chapter 9, question 15, part 2 — Source worked answer · part 2

Reviewed source answers

Solution sheet 8

Source solution page 33

NCERT Class 6 Maths Chapter 9, question 16 — Source question

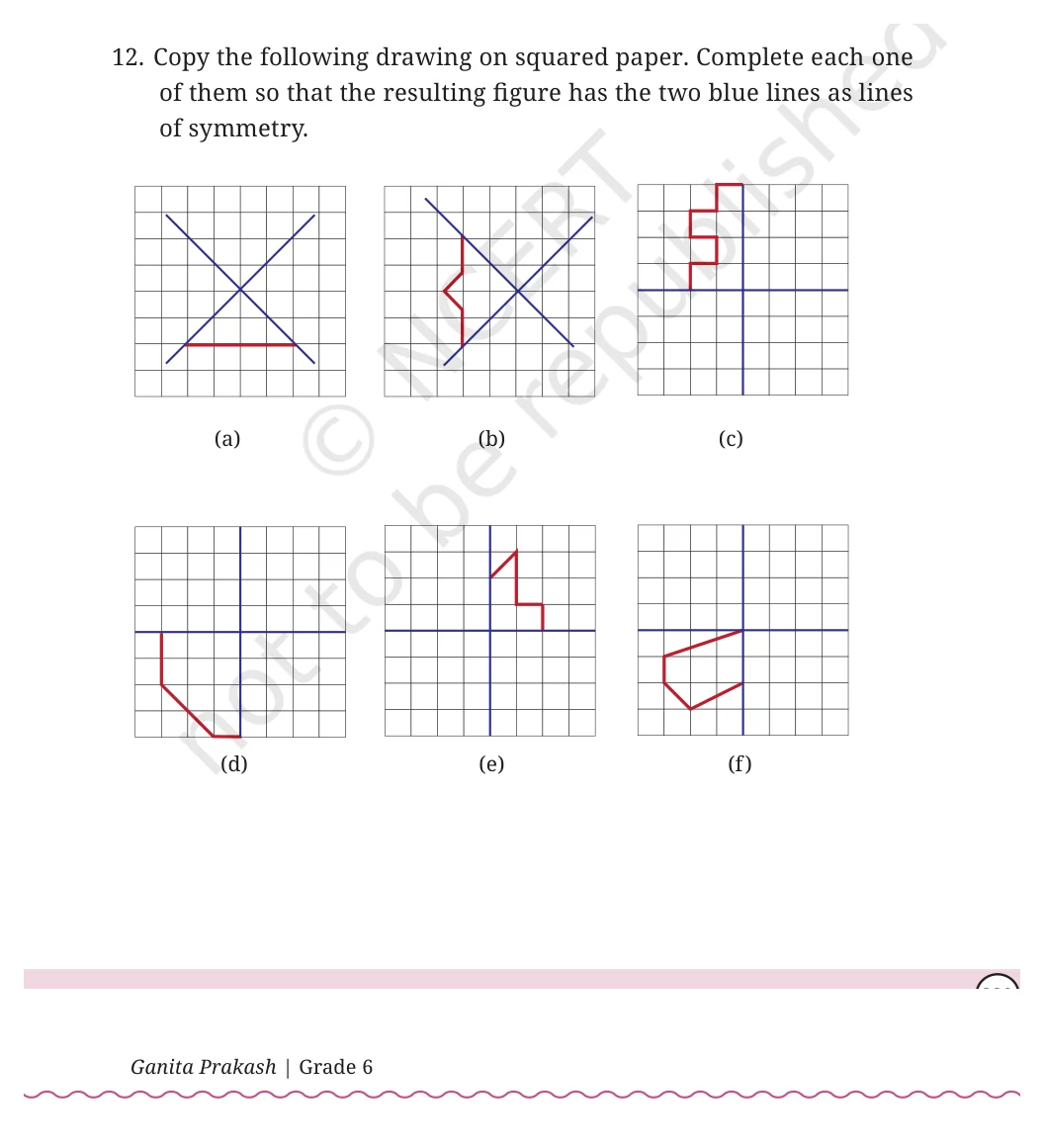

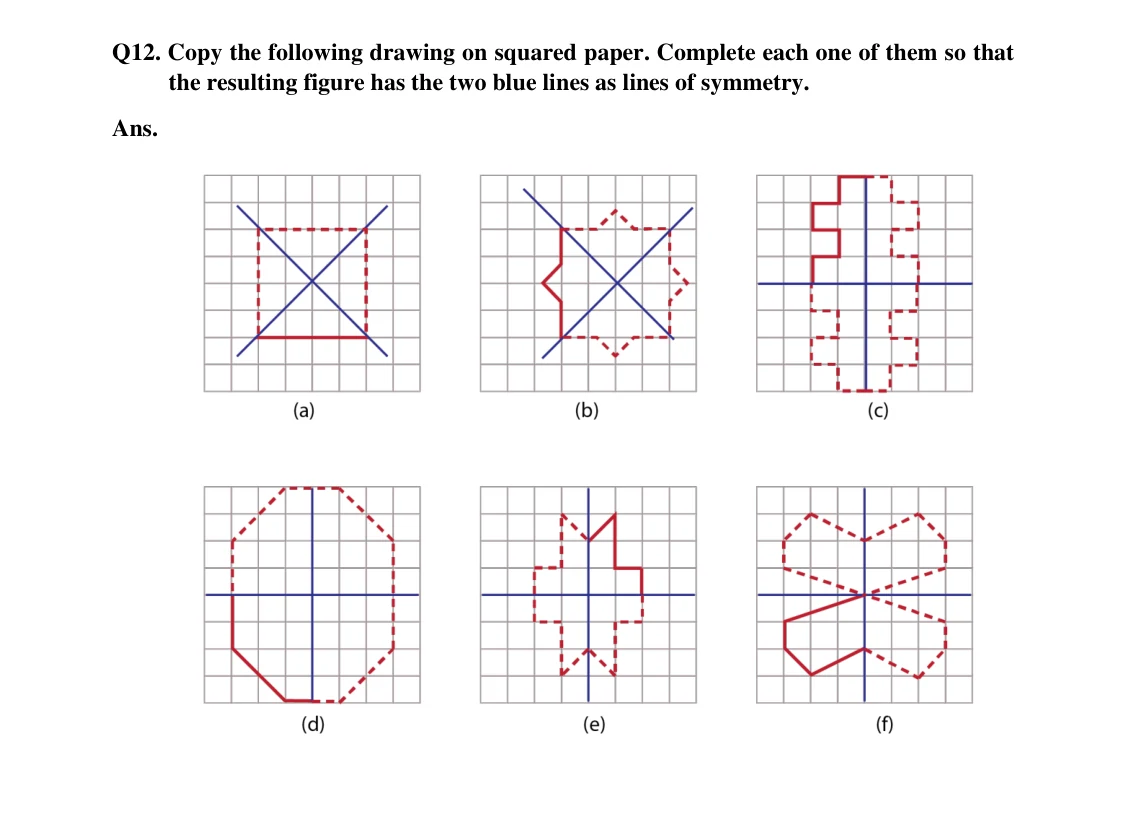

12. Copy the following drawing on squared paper. Complete each one of them so that the resulting figure has the two blue lines as lines of symmetry.

Show solution

Refer to the worked source solution below.

Source worked solution for Class 6 Chapter 9, question 16, part 1 — Source worked answer · part 1

Source solution page 33

NCERT Class 6 Maths Chapter 9, question 17 — Source question

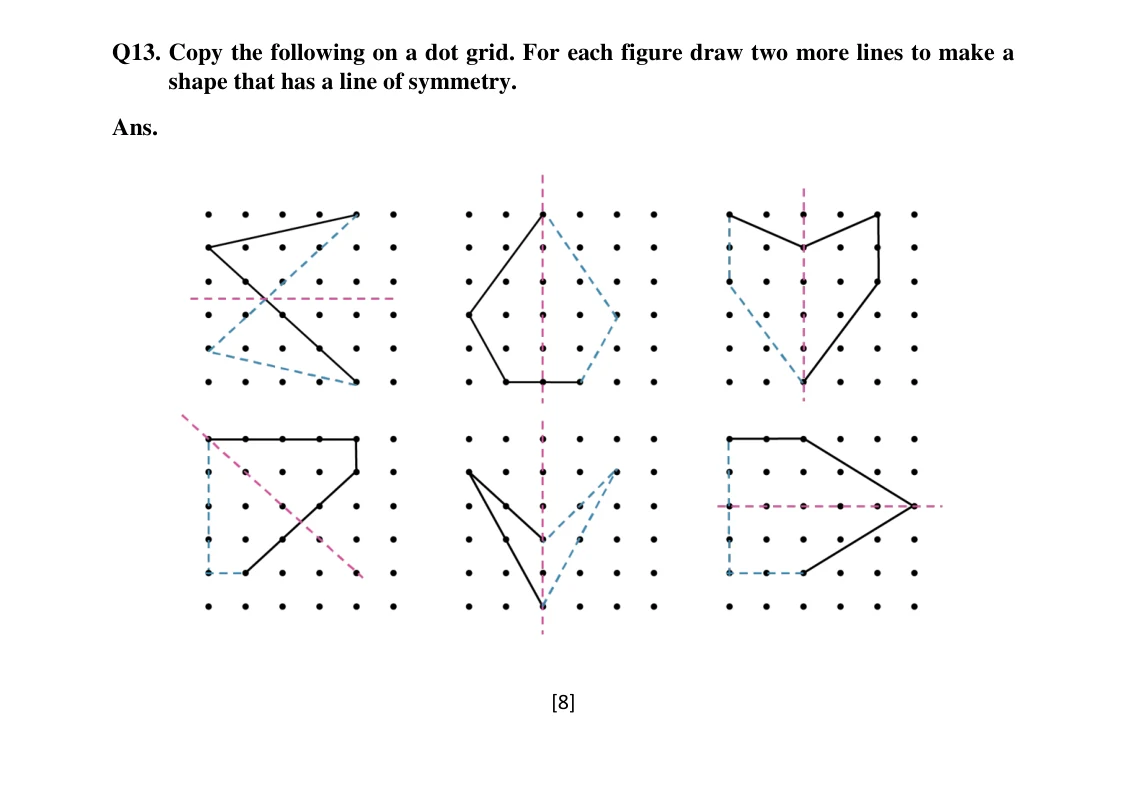

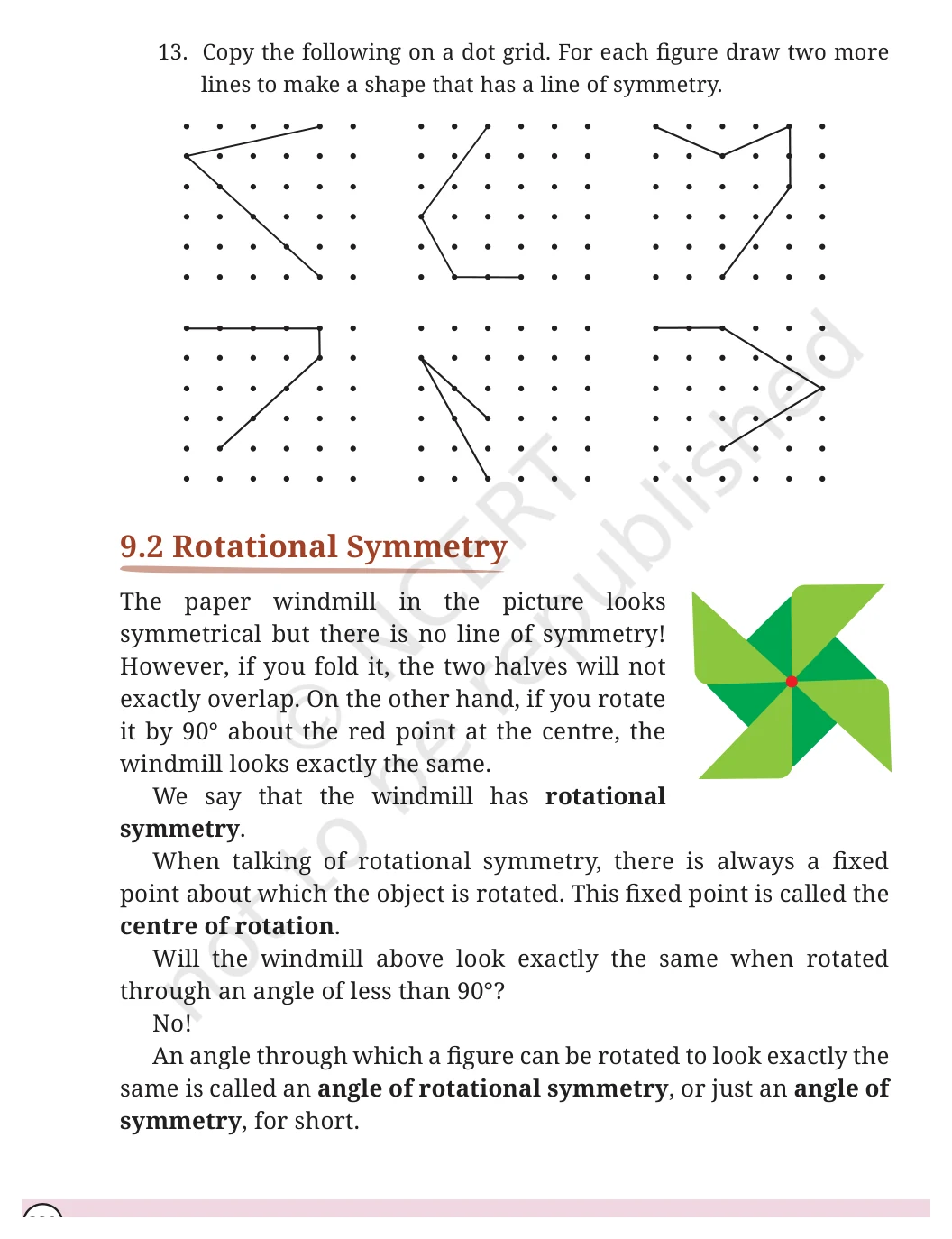

13. Copy the following on a dot grid. For each figure draw two more lines to make a shape that has a line of symmetry.

Show solution

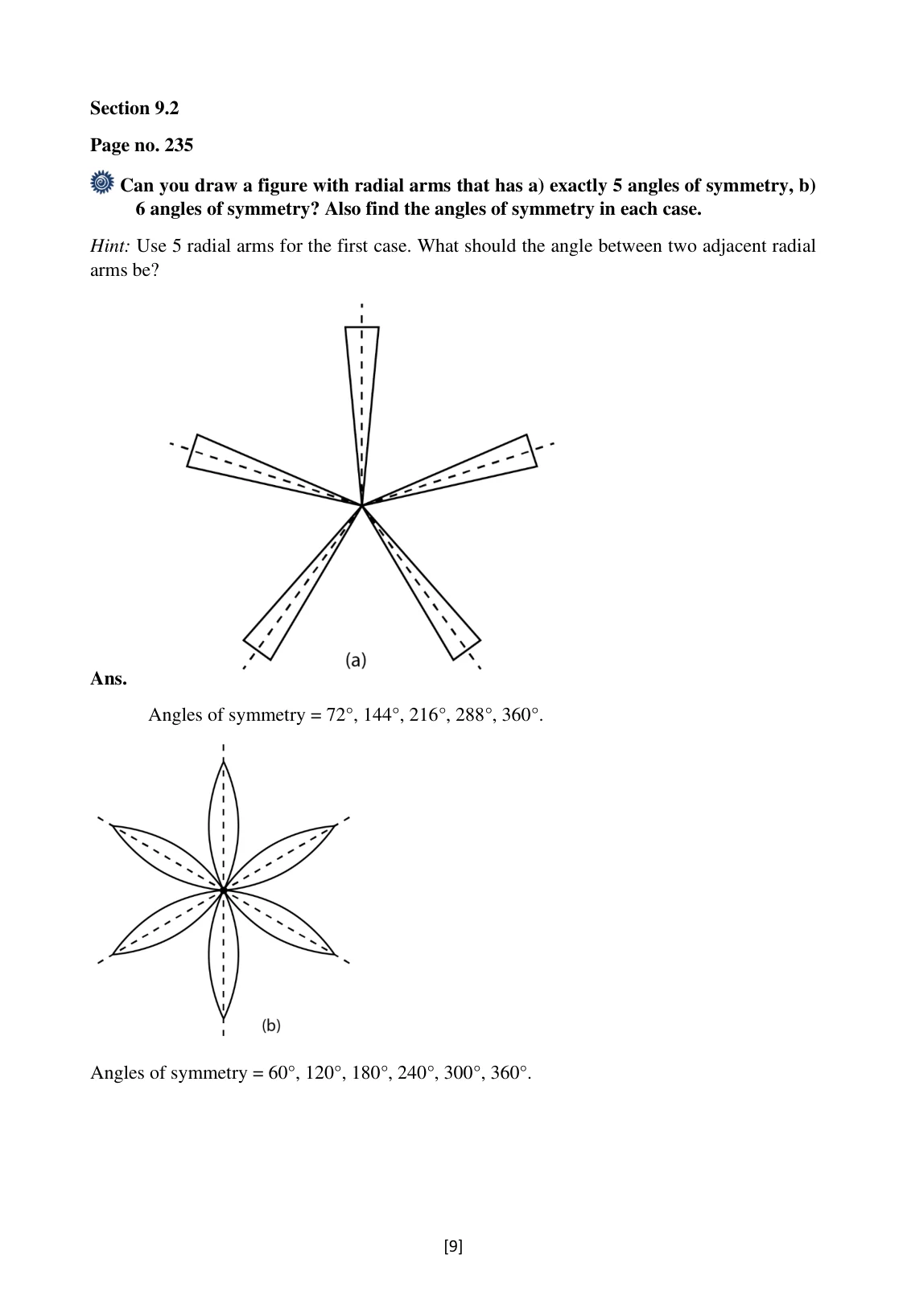

[8] Section 9.2 Page no. 235 Can you draw a figure with radial arms that has a) exactly 5 angles of symmetry, b) 6 angles of symmetry? Also find the angles of symmetry in each case. Hint: Use 5 radial arms for the first case. What should the angle between two adjacent radial arms be? Ans. Angles of symmetry = 72°, 144°, 216°, 288°, 360°. Angles of symmetry = 60°, 120°, 180°, 240°, 300°, 360°. [9] Consider a figure with radial arms having exactly 7 angles of symmetry. What will be its smallest angle of symmetry? Is the number of degrees a whole number in this case? If not, express it as a mixed faction. 3 Let us find the angles of symmetry for other kinds of figures. Ans. 360° ÷ 7 = 51 7 No, its smallest angle of symmetry is not a whole number. Page no. 235 Figure it out

Source worked solution for Class 6 Chapter 9, question 17, part 1 — Source worked answer · part 1

Source worked solution for Class 6 Chapter 9, question 17, part 2 — Source worked answer · part 2

Source worked solution for Class 6 Chapter 9, question 17, part 3 — Source worked answer · part 3

Reviewed source answers

Solution sheet 10

Page no. 235 · Figure it out

NCERT Class 6 Maths Chapter 9, question 18 — Source question

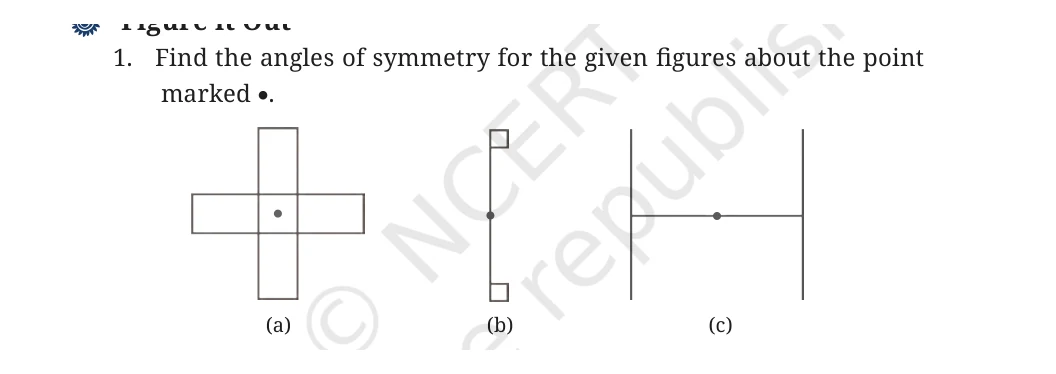

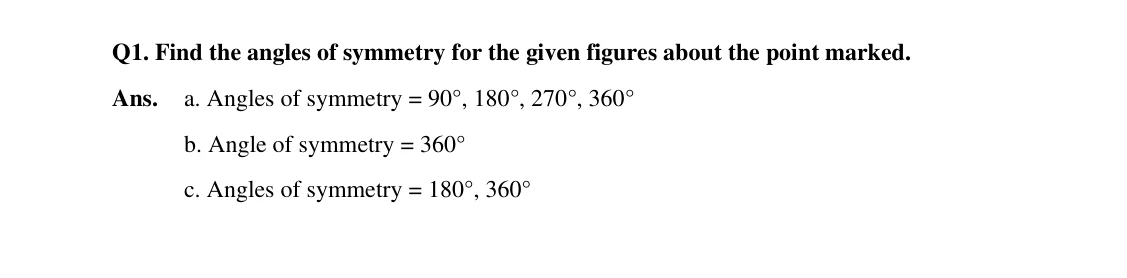

1. Find the angles of symmetry for the given figures about the point marked.

Show solution

a. Angles of symmetry = 90°, 180°, 270°, 360° b. Angle of symmetry = 360° c. Angles of symmetry = 180°, 360°

Source worked solution for Class 6 Chapter 9, question 18, part 1 — Source worked answer · part 1

Page no. 235 · Figure it out

NCERT Class 6 Maths Chapter 9, question 19 — Source question

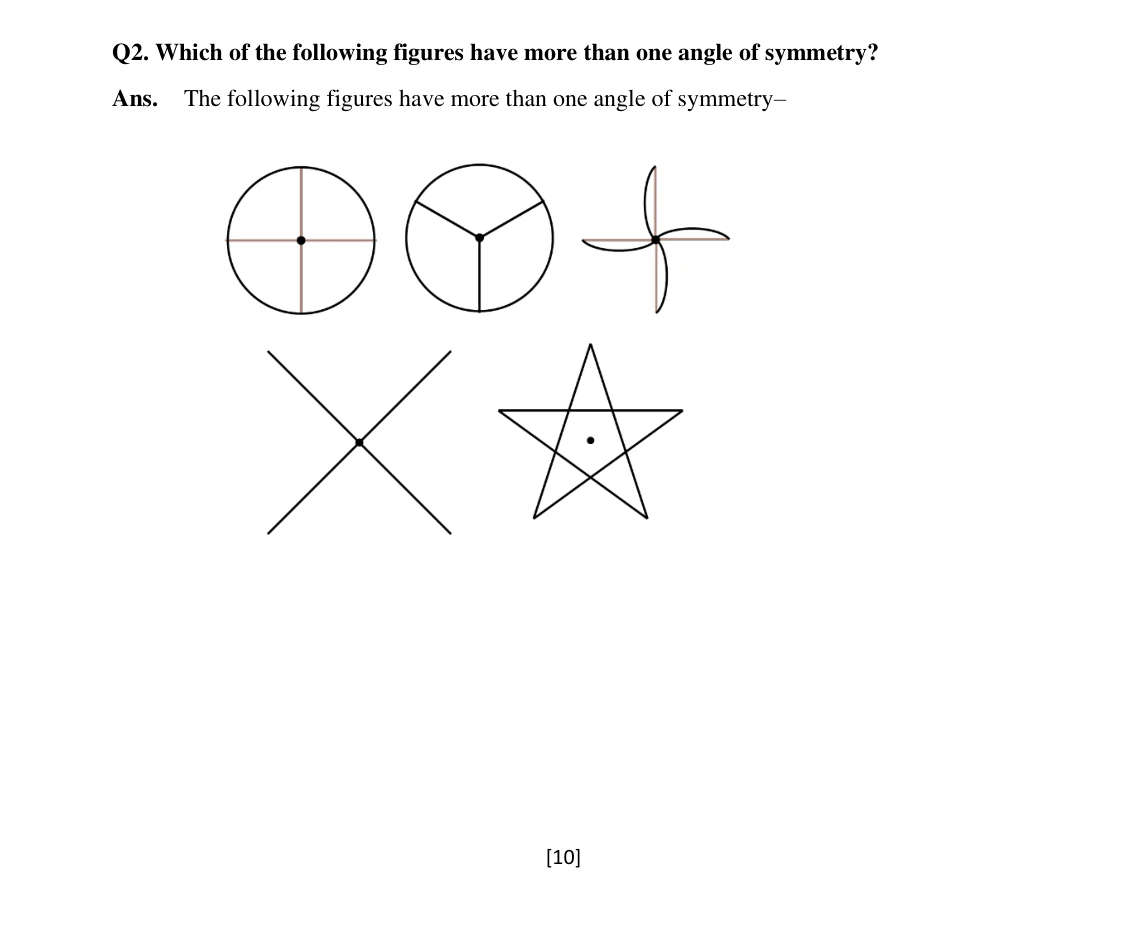

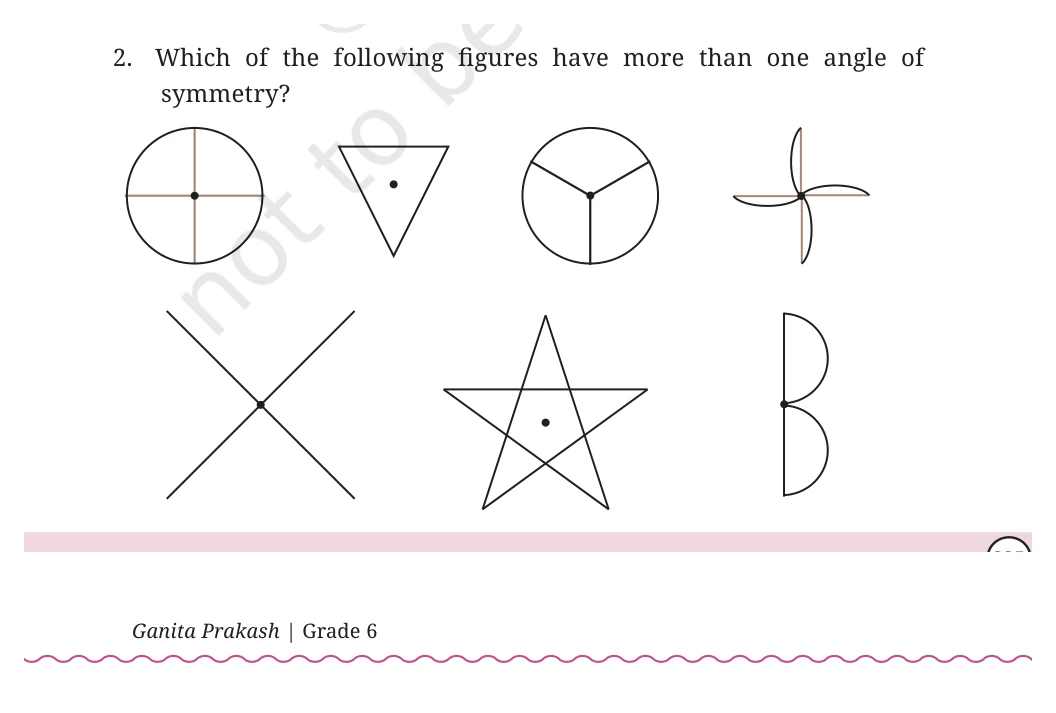

2. Which of the following figures have more than one angle of symmetry?

Show solution

The following figures have more than one angle of symmetry– [10]

Source worked solution for Class 6 Chapter 9, question 19, part 1 — Source worked answer · part 1

Source worked solution for Class 6 Chapter 9, question 19, part 2 — Source worked answer · part 2

Reviewed source answers

Solution sheet 11

Source solution page 36

NCERT Class 6 Maths Chapter 9, question 20 — Source question

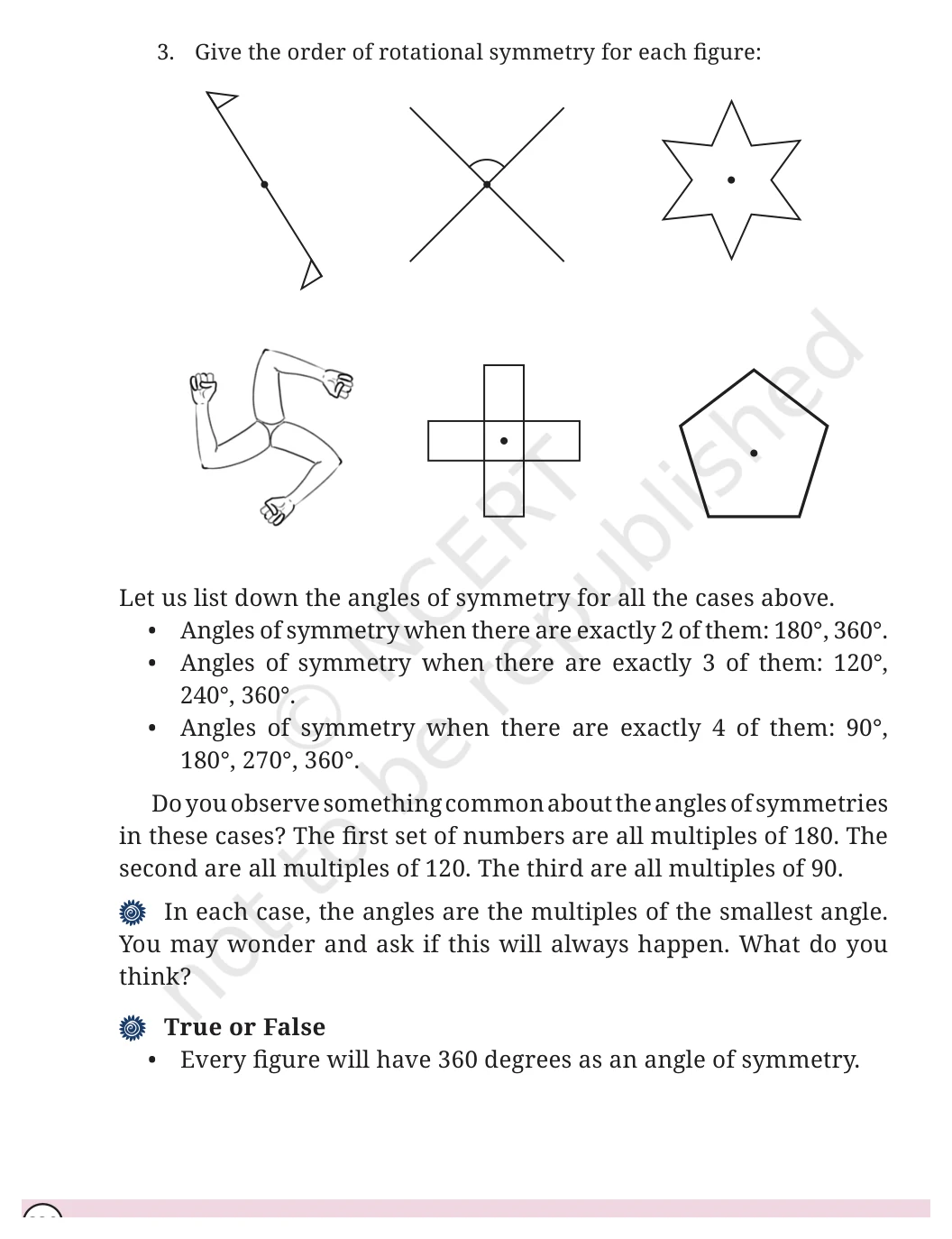

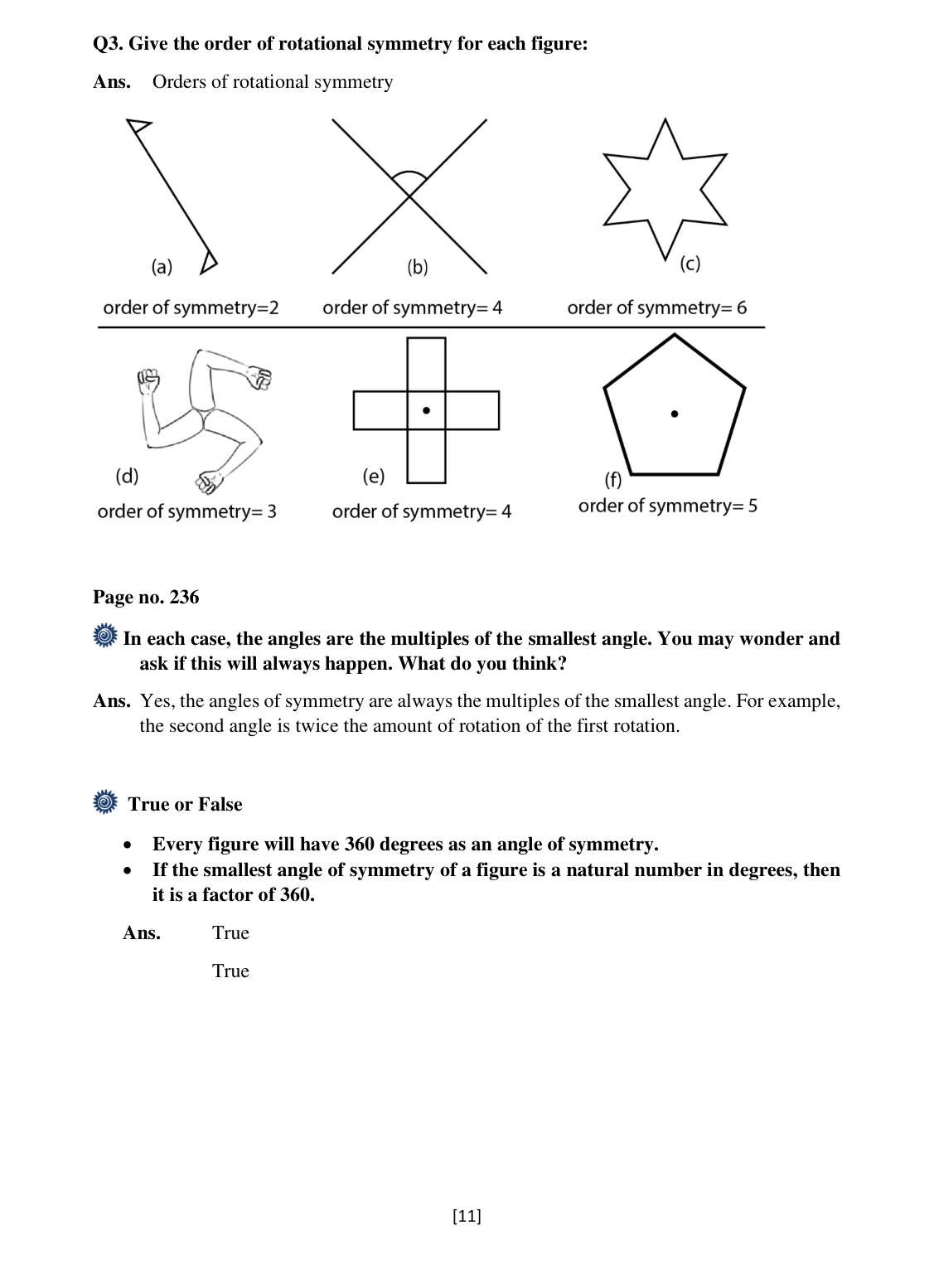

3. Give the order of rotational symmetry for each figure:

Show solution

Orders of rotational symmetry Page no. 236 In each case, the angles are the multiples of the smallest angle. You may wonder and ask if this will always happen. What do you think? Ans. Yes, the angles of symmetry are always the multiples of the smallest angle. For example, the second angle is twice the amount of rotation of the first rotation. True or False • Every figure will have 360 degrees as an angle of symmetry. • If the smallest angle of symmetry of a figure is a natural number in degrees, then it is a factor of 360. Ans. True True [11] Section 9.2 Page no. 238 Figure it out

Source worked solution for Class 6 Chapter 9, question 20, part 1 — Source worked answer · part 1

Source worked solution for Class 6 Chapter 9, question 20, part 2 — Source worked answer · part 2

Reviewed source answers

Solution sheet 12

Page no. 238 · Figure it out

NCERT Class 6 Maths Chapter 9, question 21 — Source question

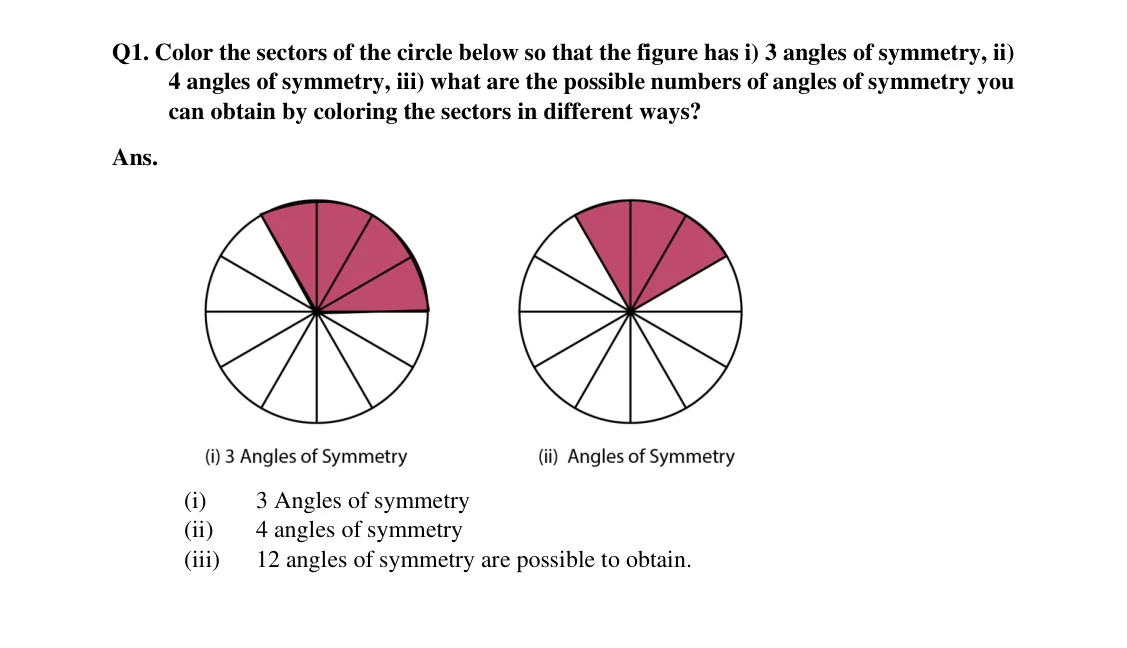

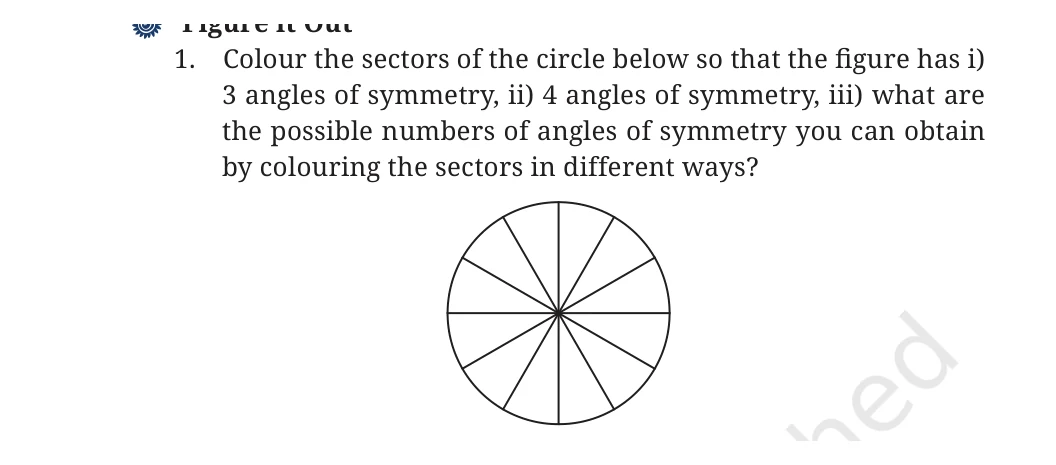

1. Color the sectors of the circle below so that the figure has i) 3 angles of symmetry, ii) 4 angles of symmetry, iii) what are the possible numbers of angles of symmetry you can obtain by coloring the sectors in different ways?

Show solution

(i) 3 Angles of symmetry (ii) 4 angles of symmetry (iii) 12 angles of symmetry are possible to obtain.

Source worked solution for Class 6 Chapter 9, question 21, part 1 — Source worked answer · part 1

Source solution page 37

NCERT Class 6 Maths Chapter 9, question 22 — Source question

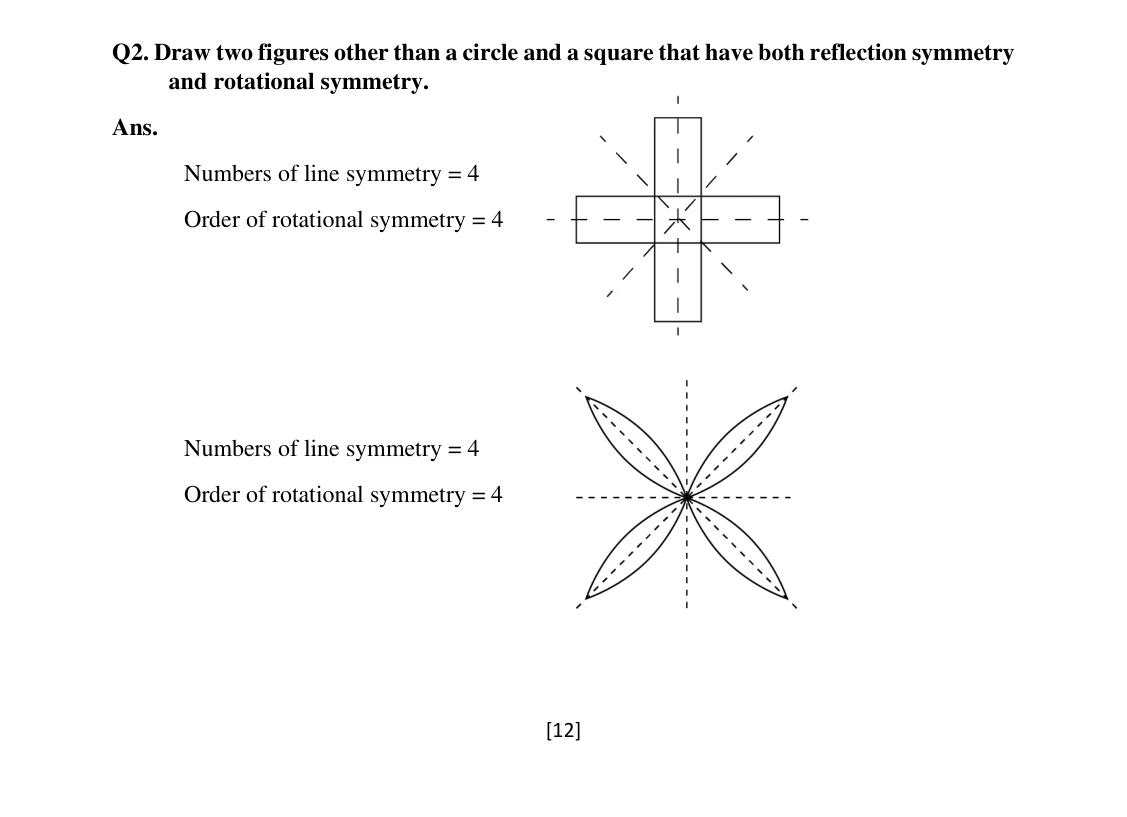

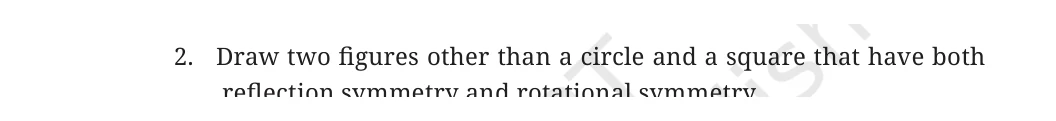

2. Draw two figures other than a circle and a square that have both reflection symmetry and rotational symmetry.

Show solution

Numbers of line symmetry = 4 Order of rotational symmetry = 4 Numbers of line symmetry = 4 Order of rotational symmetry = 4 [12]

Source worked solution for Class 6 Chapter 9, question 22, part 1 — Source worked answer · part 1

Source worked solution for Class 6 Chapter 9, question 22, part 2 — Source worked answer · part 2

Reviewed source answers

Solution sheet 13

Source solution page 38

NCERT Class 6 Maths Chapter 9, question 23 — Source question

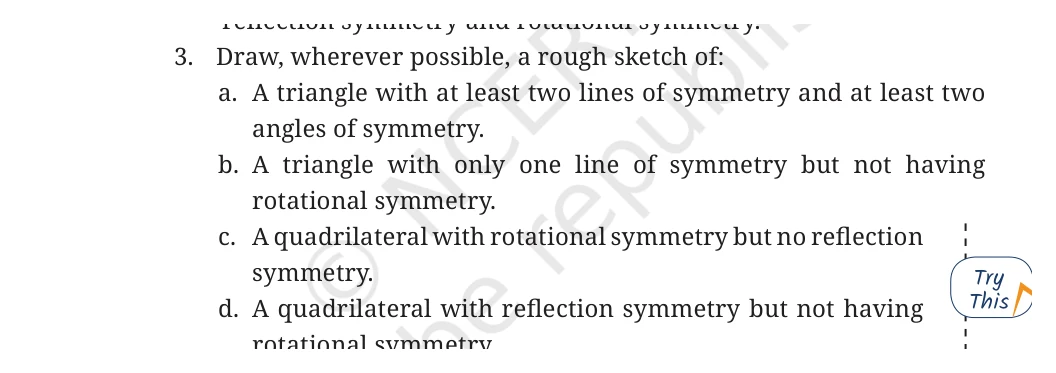

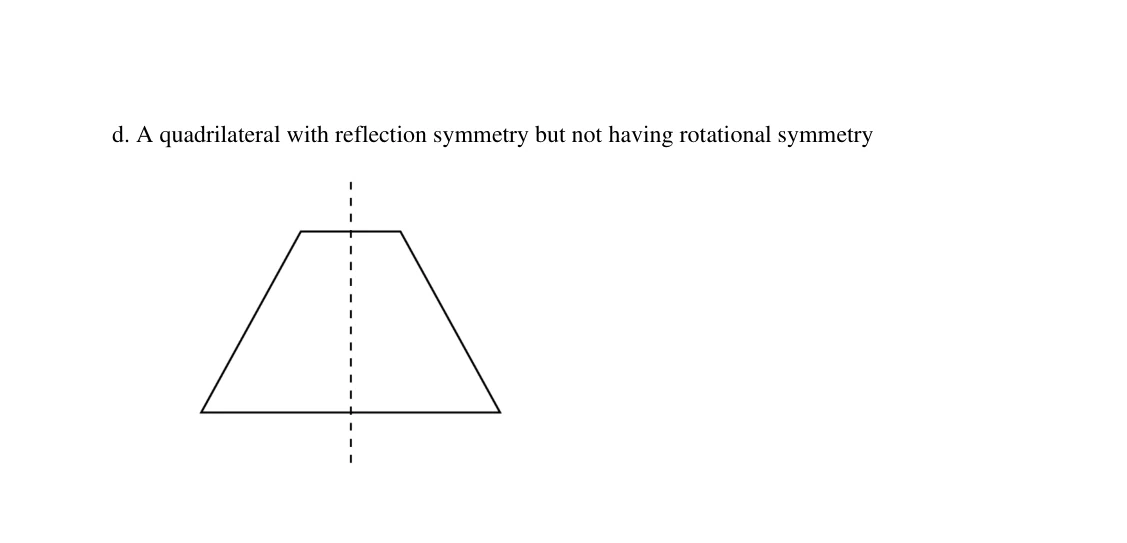

3. Draw, wherever possible, a rough sketch of a. A triangle with at least two lines of symmetry and at least two angles of symmetry. b. A triangle with only one line of symmetry but not having rotational symmetry. c. A quadrilateral with rotational symmetry but no reflection symmetry. d. A quadrilateral with reflection symmetry but not having rotational symmetry.

Show solution

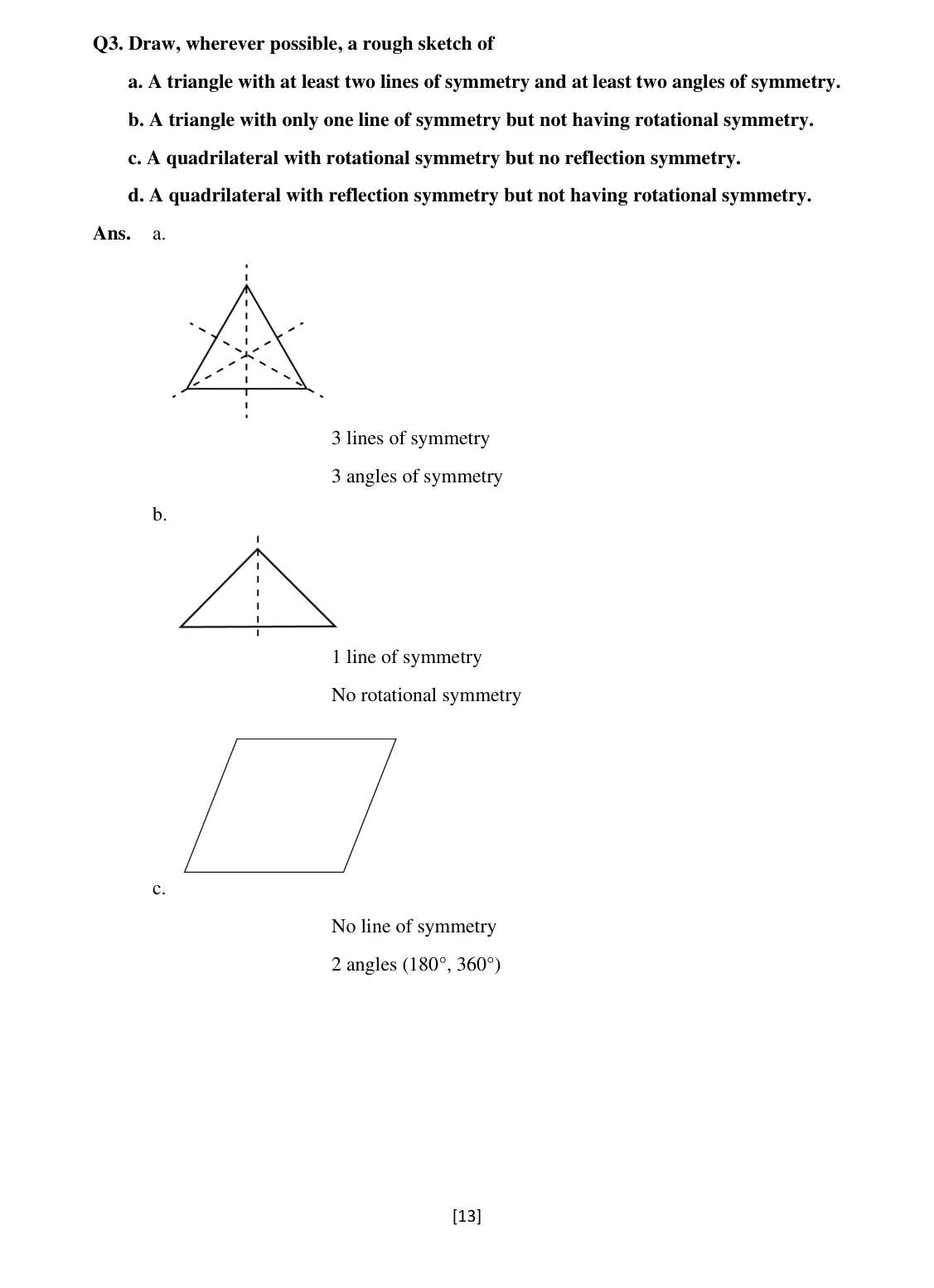

a. 3 lines of symmetry 3 angles of symmetry b. 1 line of symmetry No rotational symmetry c. No line of symmetry 2 angles (180°, 360°) [13] d. A quadrilateral with reflection symmetry but not having rotational symmetry

Source worked solution for Class 6 Chapter 9, question 23, part 1 — Source worked answer · part 1

Source worked solution for Class 6 Chapter 9, question 23, part 2 — Source worked answer · part 2

Reviewed source answers

Solution sheet 14

Source solution page 39

NCERT Class 6 Maths Chapter 9, question 24 — Source question

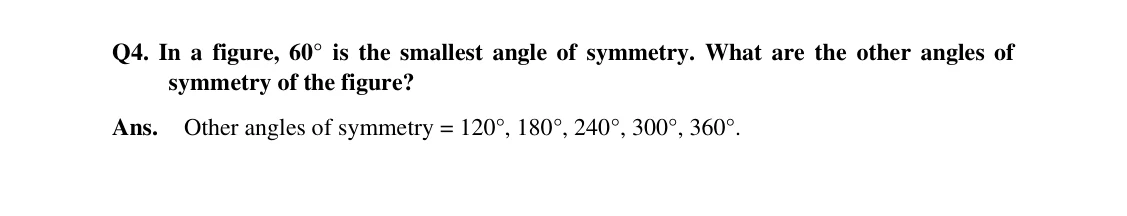

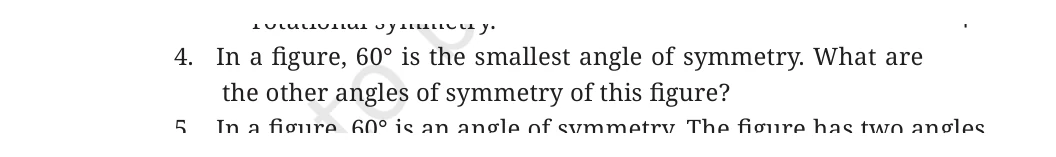

4. In a figure, 60° is the smallest angle of symmetry. What are the other angles of symmetry of the figure?

Show solution

Other angles of symmetry = 120°, 180°, 240°, 300°, 360°.

Source worked solution for Class 6 Chapter 9, question 24, part 1 — Source worked answer · part 1

Source solution page 39

NCERT Class 6 Maths Chapter 9, question 25 — Source question

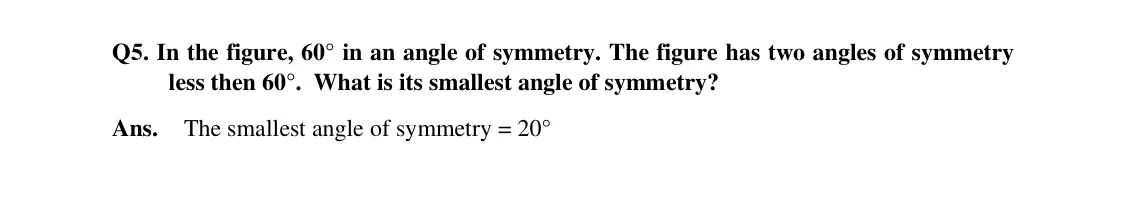

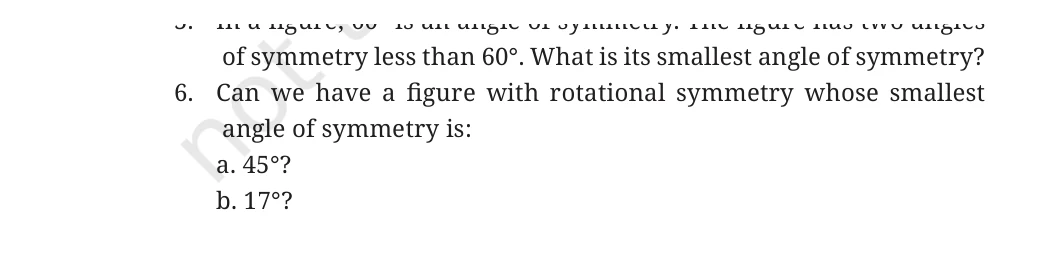

5. In the figure, 60° in an angle of symmetry. The figure has two angles of symmetry less then 60°. What is its smallest angle of symmetry?

Show solution

The smallest angle of symmetry = 20°

Source worked solution for Class 6 Chapter 9, question 25, part 1 — Source worked answer · part 1

Source solution page 39

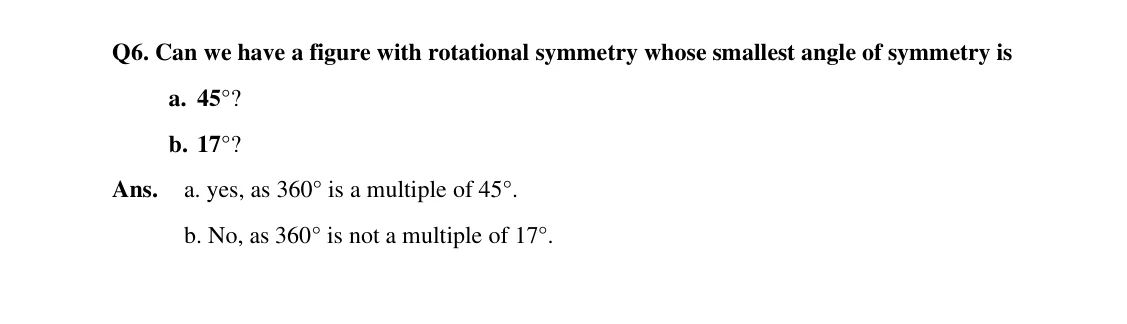

NCERT Class 6 Maths Chapter 9, question 26 — Source question

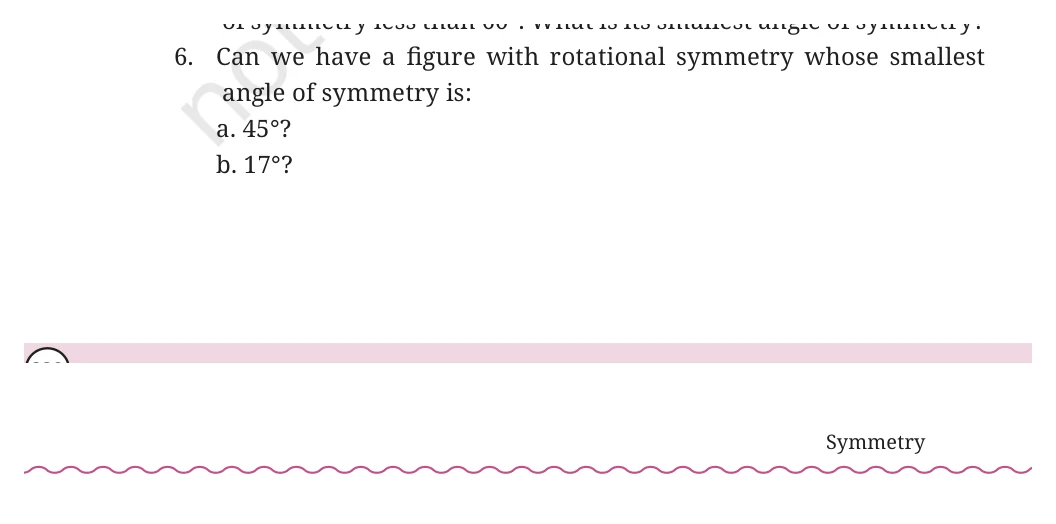

6. Can we have a figure with rotational symmetry whose smallest angle of symmetry is a. 45°? b. 17°?

Show solution

a. yes, as 360° is a multiple of 45°. b. No, as 360° is not a multiple of 17°.

Source worked solution for Class 6 Chapter 9, question 26, part 1 — Source worked answer · part 1

Source solution page 39

NCERT Class 6 Maths Chapter 9, question 27 — Source question

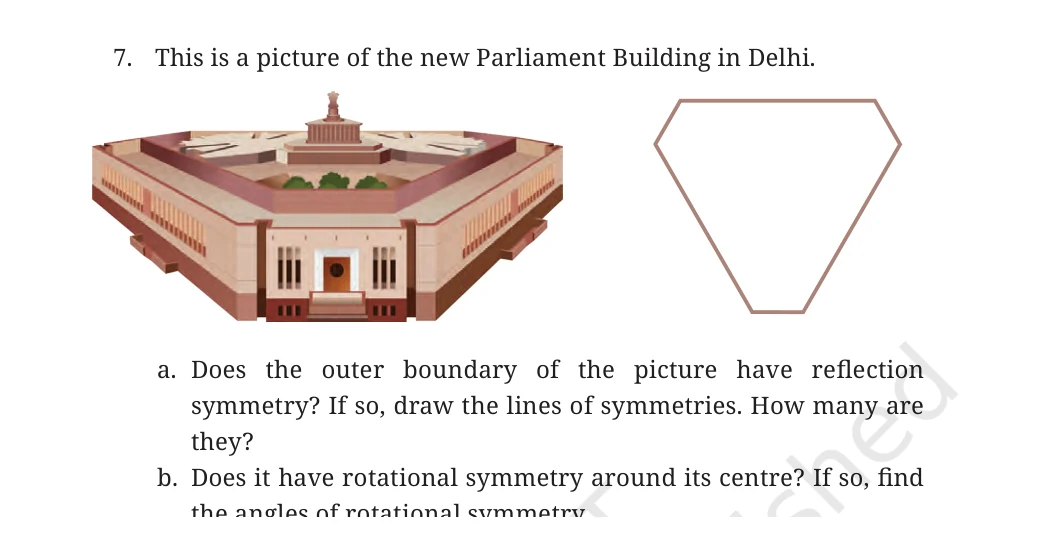

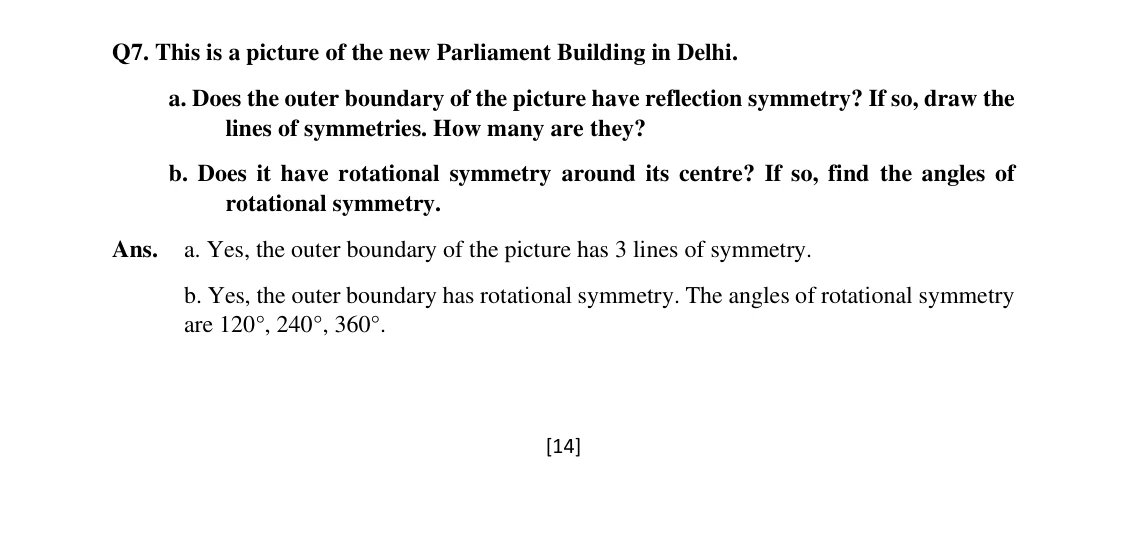

7. This is a picture of the new Parliament Building in Delhi. a. Does the outer boundary of the picture have reflection symmetry? If so, draw the lines of symmetries. How many are they? b. Does it have rotational symmetry around its centre? If so, find the angles of rotational symmetry.

Show solution

a. Yes, the outer boundary of the picture has 3 lines of symmetry. b. Yes, the outer boundary has rotational symmetry. The angles of rotational symmetry are 120°, 240°, 360°. [14]

Source worked solution for Class 6 Chapter 9, question 27, part 1 — Source worked answer · part 1

Source worked solution for Class 6 Chapter 9, question 27, part 2 — Source worked answer · part 2

Reviewed source answers

Solution sheet 15

Source solution page 40

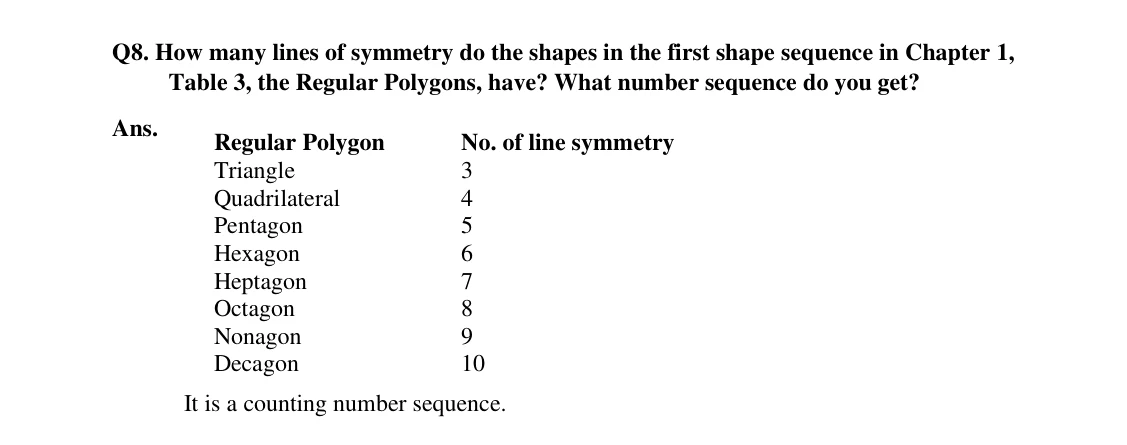

NCERT Class 6 Maths Chapter 9, question 28 — Source question

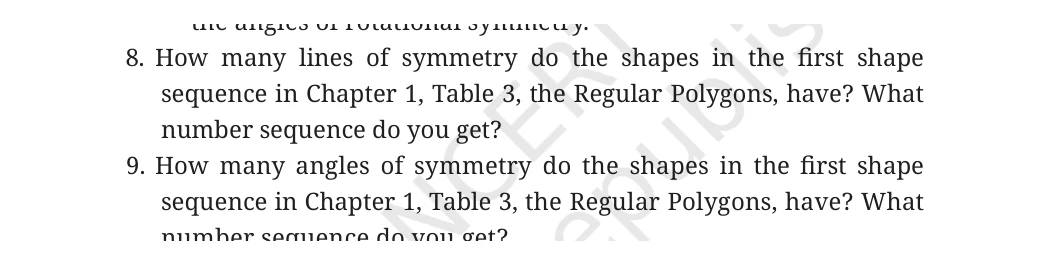

8. How many lines of symmetry do the shapes in the first shape sequence in Chapter 1, Table 3, the Regular Polygons, have? What number sequence do you get?

Show solution

Regular Polygon No. of line symmetry Triangle Quadrilateral Pentagon Hexagon Heptagon Octagon Nonagon Decagon 3 4 5 6 7 8 9 10 It is a counting number sequence.

Source worked solution for Class 6 Chapter 9, question 28, part 1 — Source worked answer · part 1

Source solution page 40

NCERT Class 6 Maths Chapter 9, question 29 — Source question

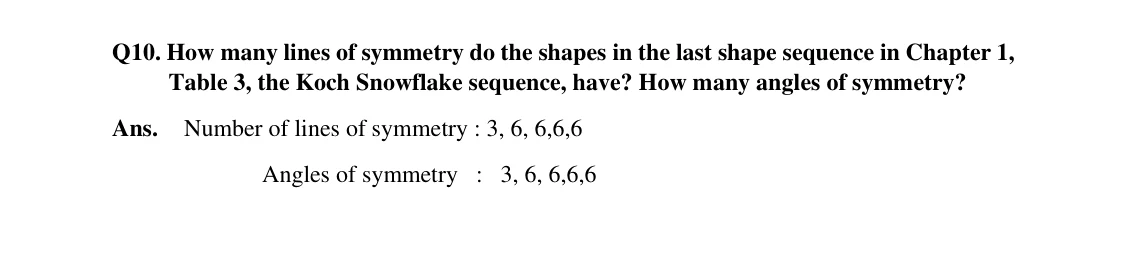

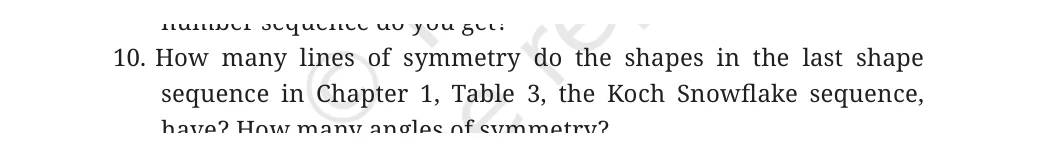

10. How many lines of symmetry do the shapes in the last shape sequence in Chapter 1, Table 3, the Koch Snowflake sequence, have? How many angles of symmetry?

Show solution

Number of lines of symmetry : 3, 6, 6,6,6 Angles of symmetry : 3, 6, 6,6,6

Source worked solution for Class 6 Chapter 9, question 29, part 1 — Source worked answer · part 1

Source solution page 40

NCERT Class 6 Maths Chapter 9, question 30 — Source question

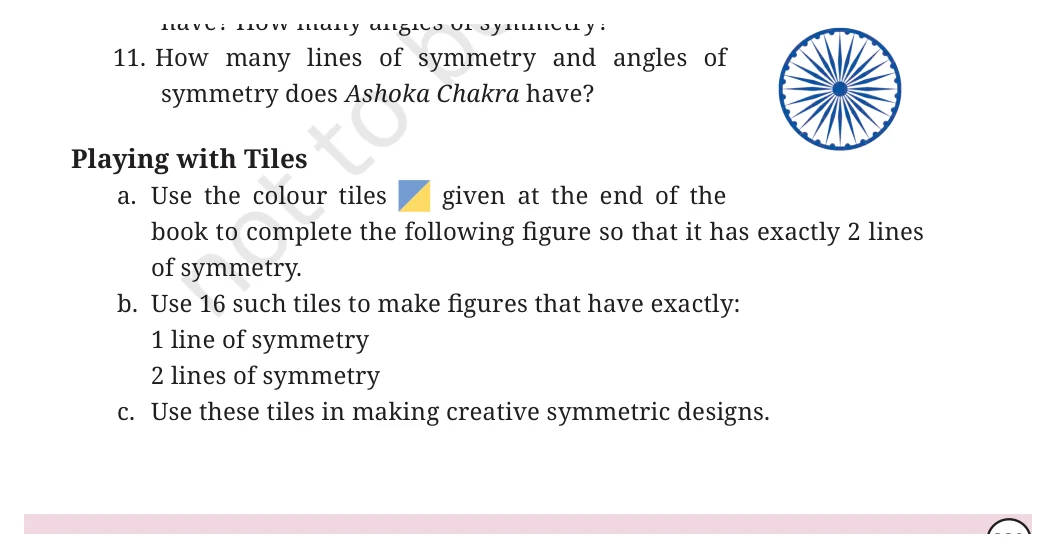

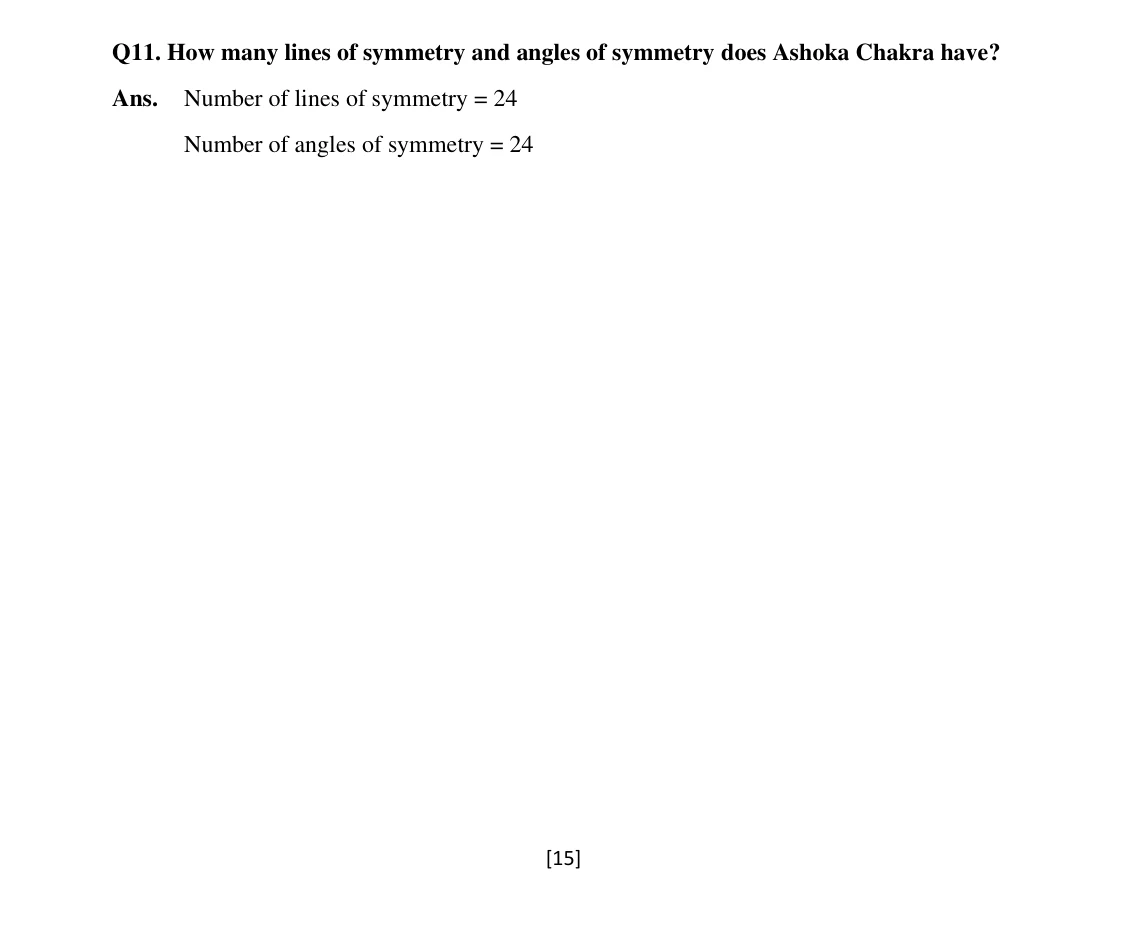

11. How many lines of symmetry and angles of symmetry does Ashoka Chakra have?

Show solution

Number of lines of symmetry = 24 Number of angles of symmetry = 24 [15]

Source worked solution for Class 6 Chapter 9, question 30, part 1 — Source worked answer · part 1

Match, attempt, then check

1. Do you see any line of symmetry in the figures at the start of the chapter? What about in the picture of the cloud?

2. For each of the following figures, identify the line(s) of symmetry if it exists.

Is there any other way to fold the square so that the two halves overlap? How many lines of symmetry does the square shape have?

We saw that the diagonal of a square is also a line of symmetry. Let us take a rectangle that is not a square. Is its diagonal a line of symmetry?

What if we reflect along the diagonal from A to C? Where do points A, B, C and D go? What if we reflect along the horizontal line of symmetry?

1 In each of the following figures, a hole was punched in a folded square sheet of paper and then the paper was unfolded. Identify the line along which the paper was folded. Figure (d) was created by punching a single hole. How was the paper folded?

2. Given the line(s) of symmetry, find the other hole(s):

4. After each of the following cuts, predict the shape of the hole when the paper is opened. After you have made your prediction, make the cutouts and verify your

6. How many lines of symmetry do these shapes have?

7. Trace each figure and draw the lines of symmetry, if any: [4]

8. Find the lines of symmetry for the kolam below.

9. Draw the following. a. A triangle with exactly one line of symmetry b. A triangle with exactly three lines of symmetry c. A triangle with no line of symmetry Is it possible to draw a triangle with exactly two lines of symmetry? [5]

10. Draw the following. In each case, the figure should contain at least one curved boundary. a. A figure with exactly one line of Symmetry b. A figure with exactly two lines of symmetry c. A figure with exactly four lines of symmetry

11. Copy the following on squared paper. Complete them so that the blue line is a line of symmetry. Problem (a) has been done for you. Hint: For (c) and (f), see if rotating the book helps!

12. Copy the following drawing on squared paper. Complete each one of them so that the resulting figure has the two blue lines as lines of symmetry.

13. Copy the following on a dot grid. For each figure draw two more lines to make a shape that has a line of symmetry.

1. Find the angles of symmetry for the given figures about the point marked.

2. Which of the following figures have more than one angle of symmetry?

3. Give the order of rotational symmetry for each figure:

1. Color the sectors of the circle below so that the figure has i) 3 angles of symmetry, ii) 4 angles of symmetry, iii) what are the possible numbers of angles of symmetry you can obtain by coloring the sectors in different ways?

2. Draw two figures other than a circle and a square that have both reflection symmetry and rotational symmetry.

4. In a figure, 60° is the smallest angle of symmetry. What are the other angles of symmetry of the figure?

5. In the figure, 60° in an angle of symmetry. The figure has two angles of symmetry less then 60°. What is its smallest angle of symmetry?

6. Can we have a figure with rotational symmetry whose smallest angle of symmetry is a. 45°? b. 17°?

7. This is a picture of the new Parliament Building in Delhi. a. Does the outer boundary of the picture have reflection symmetry? If so, draw the lines of symmetries. How many are they? b. Does it have rotational symmetry around its centre? If so, find the angles of rotational symmetry.

8. How many lines of symmetry do the shapes in the first shape sequence in Chapter 1, Table 3, the Regular Polygons, have? What number sequence do you get?

10. How many lines of symmetry do the shapes in the last shape sequence in Chapter 1, Table 3, the Koch Snowflake sequence, have? How many angles of symmetry?

11. How many lines of symmetry and angles of symmetry does Ashoka Chakra have?
